Product Details:
Payment & Shipping Terms:
|
| Model: | XG6121 | Engine Model: | Cummins 4BTA3.9 |
|---|---|---|---|
| Operating Weight: | 12100 | Static Linear Load Of Drum: | 333 |
| Vibration Frequency: | 30 | Theoretical Amplitude: | 1.7/0.85 |
| High Light: | road machinery equipment,road construction safety equipment |
||
Specification:
| Description | Unit | XG6121 | |
| Operating Weight | kg | 12100 | |
| Static Linear Load of Drum | N/cm | 333 | |
| Vibration Frequency | Hz | 30 | |
| Theoretical Amplitude | mm | 1.7/0.85 | |
| Centrifugal Force | kN | 247/127 | |
| Drum Weight | kg | 7100 | |
| Drum Linear Static Load | N/cm | 333 | |
| Min. Turning Radius | mm | 6300 | |
| Max. Gradeability | % | 50 | |
| Drum (D×W) | mm | φ1550×2130 | |
| Min. Ground Clearance | mm | 295 | |
| Overall Dimensions (L×W×H) | mm | ||
| Travel speed | Gear I | km/h | 0-4.3 |
| Gear II | km/h | 0-6.4 | |
| Gear III | km/h | 0-9.2 | |
| Engine | Model | Cummins 6BT5.9 | |
| Rated Power | kW | 112 | |
| Rated Speed | r/min | 2400 | |
Description:

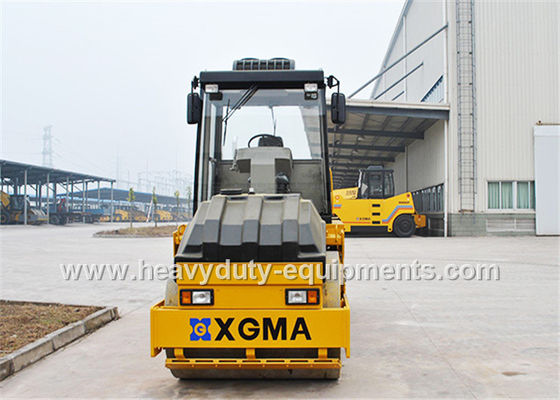

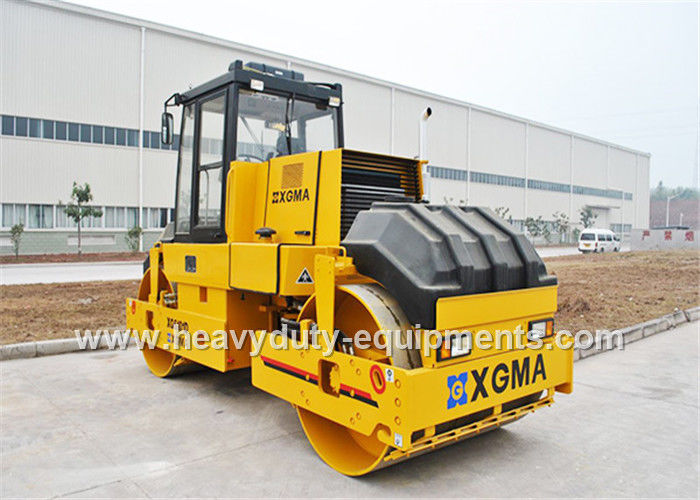

Road rollers of this series are hydrostatic transmission double drive vibratory road rollers. They are ideally suited for compaction operations of road, railway, airport, dam and various earthwork foundations.
Features of XGMA Hydraulic Vibratory Road Roller
Advantage:
1. Adopt Dongfeng Cummins turbocharged diesel engine, with the features of being reliable, environment friendly and energy-saving.
2. Reasonable power selection, remarkable overall performance, and great operation efficiency.
3. Hydraulic driving pump and motor are SAUER or REXROTH products, PERMCO or HERCULER vibrating pump and motor are used, and vibratory bearing is imported from Sweden SKF or Germany FAG.
4. Its two amplitudes accommodate to various working conditions, with the front/rear drive and the continuous travel speed control.
