Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Weichai WP4G110E220 | High Vibration Amplitude: | 2.0 |
|---|---|---|---|
| Low Vibration Amplitude: | 1.0 | Vibratory Drum Width (mm): | 2130 |
| Static Linear Load (N/cm): | 259/277 | Centrifugal Force (high/low) (kN): | 270/180 |
| High Light: | road construction machinery,road construction safety equipment |
||

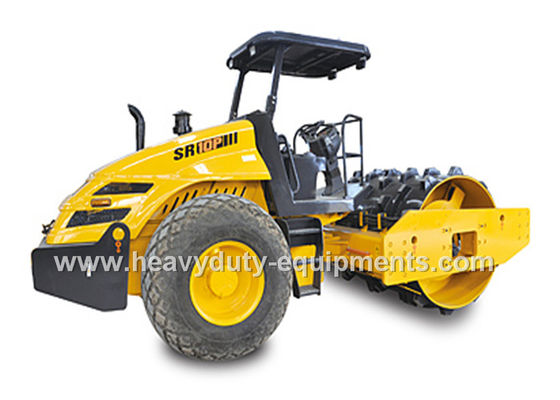

Shantui SR10 10T single drum road roller with 2130mm drum width, weichai engine, 35hz
Specification;
| Model | SR10 | High vibration amplitude | 2.0 |
| Length × width × height (mm) | 5860×2305×3015 | Low vibration amplitude | 1.0 |
| Total weight (kg) | 10120 | Vibration frequency (high/low) (Hz) | 36 |
| Front wheel weight (kg) | 5980 | Centrifugal force (high/low) (kN) | 270/180 |
| Theoretical gradeability (%) | 48 | Engine model | Weichai WP4G110E220 |
| Vibratory drum width (mm) | 2130 | Static linear load (N/cm) | 259/277 |
Description:
SR10/SR10P full-hydraulic single-drum vibratory road roller adopts the full-hydraulic drive, articulated frame, and stepless speed change and features high compacting performance to provide the user with outstanding reliability and durability.
Advantage:
1.The cab features broad visual field and can be equipped with optional air conditioning system to improve comfort.
2.The rubber shock-absorbing design isolates the operator from the vibration source to remarkably relieve the working strength.
3.Standard double-amplitude and double-frequency function expands the application scope of the equipment.
4.The high span between high and low centrifijgal forces helps the establishment of compacting schemes for different density specifications.
Advantage:
This product is suitable for the high density compacting of various clayed and non-clayed materials.
