Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Cummins 6BT5.9-C152 | High Vibration Amplitude: | 1.8 |
|---|---|---|---|
| Low Vibration Amplitude: | 0.76 | Length × Width × Height (mm): | 5710×2450×2980 |
| Total Weight (kg): | 16000 | Vibration Frequency (high/low) (Hz): | 32 |
| High Light: | road construction machinery,road machinery equipment |
||

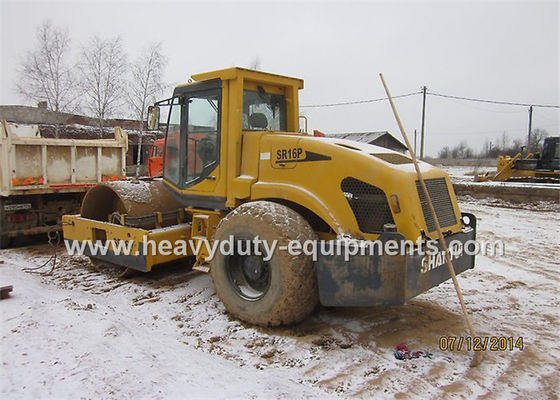

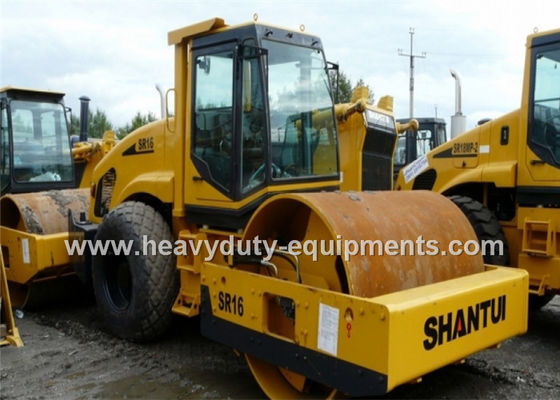

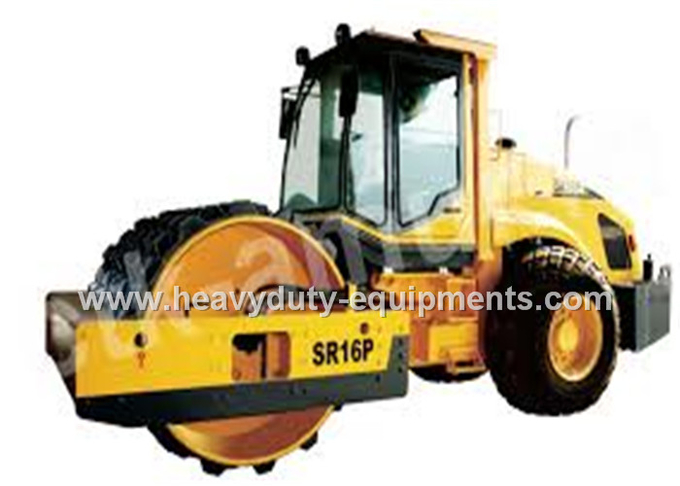

| Model | SR16 | High vibration amplitude | 1.8 |
| Length × width × height (mm) | 5710×2450×2980 | Low vibration amplitude | 0.76 |
| Total weight (kg) | 16000 | Vibration frequency (high/low) (Hz) | 32 |
| Front wheel weight (kg) | 10000 | Centrifugal force (high/low) (kN) | 317 |
| Theoretical gradeability (%) | 45 | Engine model | Cummins 6BT5.9-C152 |
| Vibratory drum width (mm) | 2140 | Static linear load (N/cm) | 468 |
Description:
The cab is equipped with air conditioning system and the rubber damper design to isolate the operator from the vibration source to remarkably relieve the working strength.
Advantage:
1.Cummins 6BTA5.9-C152 engine conformed to Euro-ll emission regulation and, compared with like products, reduces the number of parts by >25% and saves the maintenance time by >50%, featuring low maintenance cost.
2.The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.
3.The single gearshift joystick can effectively improve the working efficiency of the operator and relieve the fatigue.
4.The imported comfortable and firm seat adjustable in longitudinal direction is equipped with the left and right foldable armrests and the retractable seat belt.
Application:
This product is applicable for compacting various non-clayed soils.
