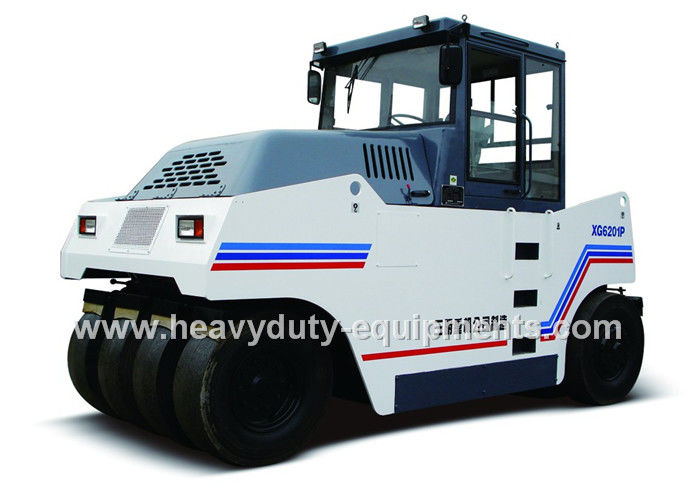

XGMA XG6201P pneumatic road roller use YC6B125-T10 powerful engine

China XGMA XG6201P pneumatic road roller use YC6B125-T10 powerful  engine supplier

Large Image :  XGMA XG6201P pneumatic road roller use YC6B125-T10 powerful engine

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: XG6201P

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: XG6201P Engine: Yuchai
Operating Weight (kg): 20000 Weight Of Counter Weighted Water (kg): 2700
Min. Operating Weight (kg): 13800 Compaction Width (mm): 2260
High Light:

road machinery equipment

,

road construction safety equipment

XGMA XG6201P pneumatic road roller use YC6B125-T10 powerful engine



Specification:



Model XG6201P Min. Ground Clearance (mm) 270
Engine Model Yuchai YC6B125-T10 Min. Turning Radius (mm) 7800
Max. Operating Weight (kg) 20000 Gradeability (%) 20
Weight of Counter weighted Water (kg) 2700 Ground Specific Pressure (kPa) 200-360
Weight of Counter weighted Iron (kg) 3500 Wheelbase (mm) 3550
Min. Operating Weight (kg) 13800 Engine Power (KW) 92
Compaction Width (mm) 2260 Overall Dimensions (L×W×H) (mm) 4620 ×2260 × 3335



Description:

Special pneumatic tyres are used to compact the layer. Uniform and dense surface can be achieved with the kneading and compacting force of the tyres.



Advantage:

  • Yuchai YC6B125-T10 engine is used for high reliability and stable performance.
  • The operating weight and air pressure of the tyres can be adjusted to accommodate various applications.
  • The transmission gearbox with synchronize ensures low-effort and flexible gear shifting operation.
  • The front wheel equips the warbler mechanism, so uniform contact with the ground can be ensured.



Application:

It can be used for compacting high-grade asphalt road surface, concrete, gravel layer and road foundation.



XGMA XG6201P pneumatic road roller use YC6B125-T10 powerful  engine
