Product Details:
Payment & Shipping Terms:
|
Model: | XG6201P | Engine: | YC6B125-T10 |
---|---|---|---|
Operating Weight (kg): | 20000 | Engine Speed (rpm): | 2200 |
Wheelbase (mm): | 3550 | Compaction Width (mm): | 2260 |
High Light: | road machinery equipment,road construction safety equipment |
Specification:
Model | XG6201P | Min. Ground Clearance (mm) | 270 |
Engine Model | Yuchai YC6B125-T10 | Min. Turning Radius (mm) | 7800 |
Max. Operating Weight (kg) | 20000 | Gradeability (%) | 20 |
Weight of Counter weighted Water (kg) | 2700 | Ground Specific Pressure (kPa) | 200-360 |
Weight of Counter weighted Iron (kg) | 3500 | Wheelbase (mm) | 3550 |
Min. Operating Weight (kg) | 13800 | Engine Speed (rpm) | 2200 |
Compaction Width (mm) | 2260 | Overall Dimensions (L×W×H) (mm) | 4620 ×2260 × 3335 |
Description:

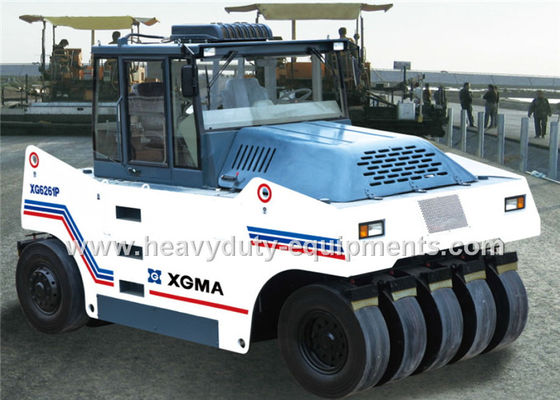

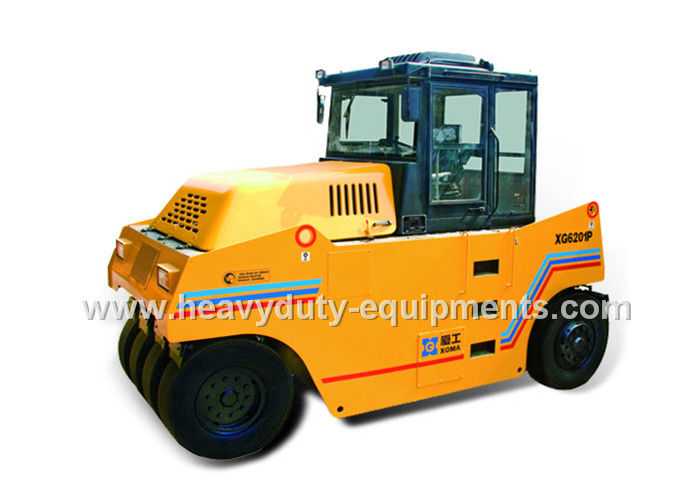

This pneumatic road roller is a type of static roller.Yuchai YC6B125-T10 engine is used for high reliability and stable performance.
Advantage:
Application:
It can be used for compacting high-grade asphalt road surface, concrete, gravel layer and road foundation.
