Product Details:
Payment & Shipping Terms:
|
| Model: | SM100MT-3 | Engine: | SC8D220G2B1 |
|---|---|---|---|
| Milling Depth (mm): | 0~320 | Milling Width (mm): | 1000 |
| Number Of Milling Cutters (piece): | 94 | Rated Speed (rpm): | 2200 |
| High Light: | road machinery equipment,road construction safety equipment |
||

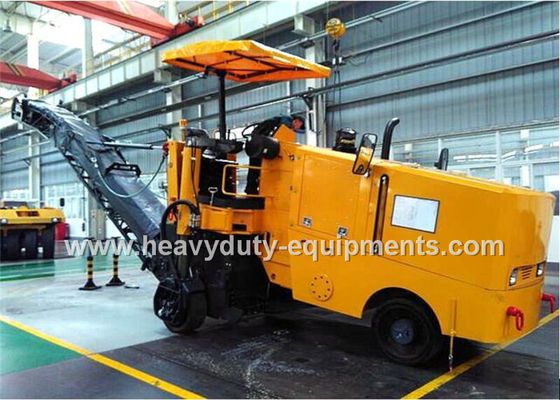

Shantui SM100MT-3 Road Milling machine with 15.2 ton of operating weight and shangchai engine
Specification:
| Length × width × height (mm) | 10900×2280×2550 | Milling width (mm) | 1000 |
| Milling depth (mm) | 0~300 | Number of milling cutters (piece) | 94 |
| Drive mode | Mechanic drive | Engine model | SC8D220G2B1 |
| Rated power (kW/hp) | 162/220 | Rated speed (rpm) | 2200 |
| Traveling speed (km/h) | 0~6.8 | Operating weight (kg) | 15200 |
| Belt width (mm) | 500 | Theoretic conveyance capacity (m3/h) | 115 |
Description:
Shantui SM100MT-3 road milling machine is one 1m-wide wheel milling machine.
Advantage:
1. The 15t operating weight guarantees stronger operating capability, with maximum milling depth at 300mm.
2. The front wheel steering mode and the large steering angle design are adopted to guarantee the flexible transfer of construction site.
3. The right rear pillar is capable of 1800 rotation for facing operations.
4. The 1,000mm milling width and the standard milling drum in cutter pitch of 15mm can easily handle the construction needs for the roads of various grades.
Application:
It’s applied for the removal and stripping of pavement diseases from urban roads and asphalt roads of various grades.
