Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Shangchai SC8D156G2B1 | Compacting Width (mm): | 2750 |
|---|---|---|---|
| Front/rear Tire Overlap (mm): | 50 | Minimum Operating Weight: | 16200 |
| Maximum Operating Weight (kg): | 26000 | Front Wheel Oscillation (mm): | ±50 |
| High Light: | road construction machinery,road construction safety equipment |
||

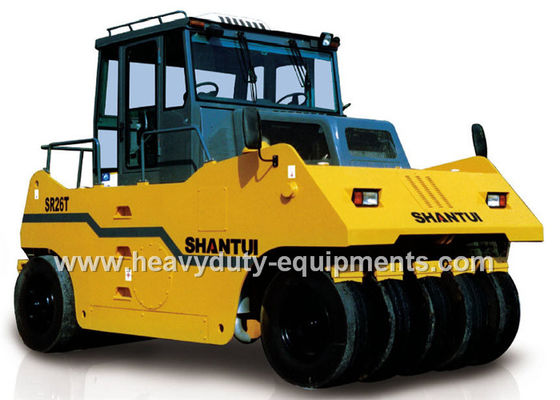

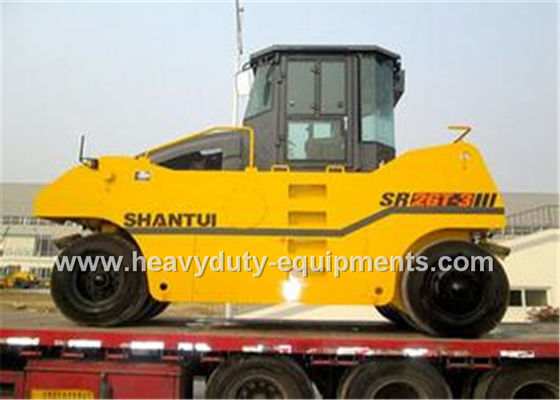

Shantui SR26T heavy duty wheel road roller with 145000 kg operating weight and Shangchai engine
Specification:
| Model | SR26T | Compacting width (mm) | 2750 |
| Length × width × height (mm) | 5060×2892×3338 | Front/rear tire overlap (mm) | 50 |
| Minimum operating weight | 16200 | Front wheel oscillation (mm) | ±50 |
| Maximum operating weight (kg) | 26000 | Gradeability (%) | 20 |
| Weight of counterweight blocks (kg) | 6280 | Engine model | Shangchai SC8D156G2B1 |
| Weight of water counterweights (kg) | 2900 | Static linear load (N/cm) | 527 |
| Number/height of padfoot (mm) | 95 | ||
Description:
SR26T heavy-duty wheel road roller adopts special inflated tires to compact the additional layer without damaging the compacted material.
Advantage:
1.The front four-tire and rear five-tire arrangement is adopted to achieve overlapped compacting effect in width-base plane, with the ground pressure up to 480KPa.
2.The compacting effect can be effectively controlled by adding/removing the counterweights to improve the working efficiency.
3.The oscillating mechanism is adopted for the front wheels to effectively and uniformly compacting the uneven working face and improve the working efficiency.
4.The independent control system with two steering wheels and two seats and the electric gearshift joystick feature flexible reversing operations and high convenience and reliability.
Application:
This machine is applicable for the compacting of base layer.
