XG6141 Double Drive Hydraulic Vibratory Road Roller Turbocharged Diesel Engine

China XG6141 Double Drive Hydraulic Vibratory Road Roller Turbocharged Diesel Engine supplier

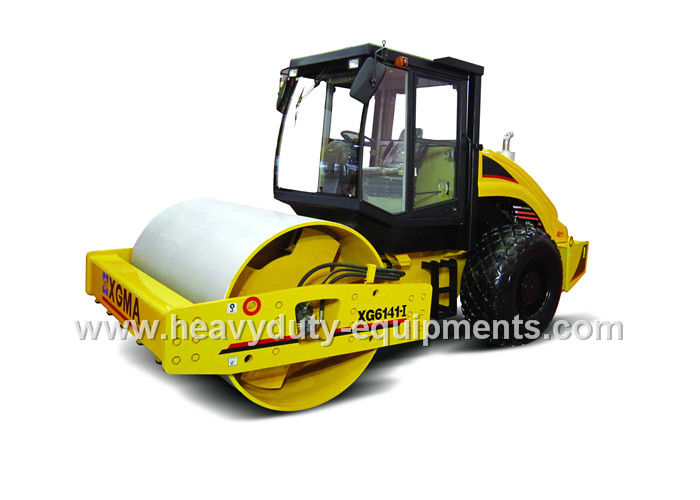

Large Image :  XG6141 Double Drive Hydraulic Vibratory Road Roller Turbocharged Diesel Engine

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: XG6141

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: XG6141 Engine Model: Cummins 4BTA3.9
Operating Weight: 14000 Vibration Frequency: 30
Theoretical Amplitude: 1.8/0.9 Centrifugal Force: 260/130
High Light:

road machinery equipment

,

road construction safety equipment

XG6141 Double Drive Hydraulic Vibratory Road Roller Turbocharged Diesel Engine





Specification:



Description Unit XG6141
Operating Weight kg 14000
Static Linear Load of Drum N/cm 385
Vibration Frequency Hz 30
Theoretical Amplitude mm 1.8/0.9
Centrifugal Force kN 260/130
Drum Weight kg 8200
Min. Turning Radius mm 6300
Max. Gradeability % 45
Drum (D×W) mm -
Min. Ground Clearance mm -
Overall Dimensions (L×W×H) mm -
Travel speed Gear I km/h 0-4.3
Gear II km/h 0-6.4
Gear III km/h 0-9.2



Description:



Road rollers of this series are hydrostatic transmission double drive vibratory road rollers. They are ideally suited for compaction operations of road, railway, airport, dam and various earthwork foundations.

Features of XGMA Hydraulic Vibratory Road Roller



Advantage:


1. Adopt Dongfeng Cummins turbocharged diesel engine, with the features of being reliable, environment friendly and energy-saving.
2. Reasonable power selection, remarkable overall performance, and great operation efficiency.
3. Hydraulic driving pump and motor are SAUER or REXROTH products, PERMCO or HERCULER vibrating pump and motor are used, and vibratory bearing is imported from Sweden SKF or Germany FAG.
4. Its two amplitudes accommodate to various working conditions, with the front/rear drive and the continuous travel speed control.
5. The spacious and quiet cab provides excellent all-around visibility and features thermal insulation, vibration reduction.
6. Safe and reliable three-stage braking system.
7. Pad-foot drum and air-conditioner are available to suit customer's specific needs.

XG6141 Double Drive Hydraulic Vibratory Road Roller Turbocharged Diesel Engine
