Product Details:
Payment & Shipping Terms:
|
| Model: | XG6181 | Engine Model: | Shangchai D6114 |
|---|---|---|---|
| Operating Weight: | 18000 | Drum Weight: | 10800 |
| Min. Turning Radius: | 6500 | Max. Grade Ability: | 35 |
| High Light: | road machinery equipment,road construction safety equipment |
||

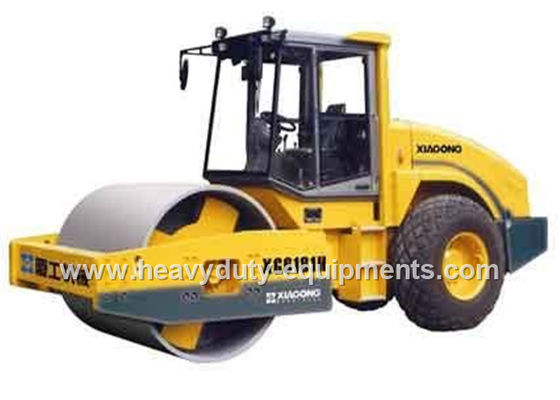

XG6181 Hydraulic Vibratory Road Roller use Vibratory bearings from Sweden SKF or Germany FAG
Specification:
| Description | Unit | XG6181 | |
| Operating Weight | kg | 18000 | |
| Static Linear Load of Drum | N/cm | 497 | |
| Vibration Frequency | Hz | 28 | |
| Theoretical Amplitude | mm | 1.8/0.9 | |
| Centrifugal Force | kN | 330/197 | |
| Drum Weight | kg | 10800 | |
| Min. Turning Radius | mm | 6500 | |
| Max. Gradeability | % | 35 | |
| Drum (D×W) | mm | φ1550×2130 | |
| Min. Ground Clearance | mm | 355 | |
| Overall Dimensions (L×W×H) | mm | 6115×2375×3185 | |
| Travel speed | Gear I | km/h | 0-4.5 |
| Gear II | km/h | 0-6.9 | |
| Gear III | km/h | 0-10.3 | |
| Engine | Model | Shangchai D6114 | |
| Rated Power | kW | 140 | |
| Rated Speed | r/min | 2200 | |
Description:
Our hydraulic road roller is a kind of super heavy, hydrostatic transmission, double drive vibratory road roller. It is designed and built for the construction of highways, railways, airports and hydraulic facilities, especially for the compaction of base and refill for various construction projects.
Features of XGMA Hydraulic Vibratory Road Roller
1. Adopt the Shanghai D6114 turbocharged diesel engine, which is reliable and conforms to the emission standard.
2. The spacious, comfortable, low-noise cab features thermal insulation, vibration reduction and provides virtually unobstructed all-around visibility.
3. The three-stage braking system is highly safe and reliable.
4. Optional pad-foot drum and air-conditioner to better suit customer's needs.
