Construction elevators rated lifting speed 36m/min used at the site of large chimney construction

China Construction elevators rated lifting speed 36m/min used at the site of large chimney construction supplier

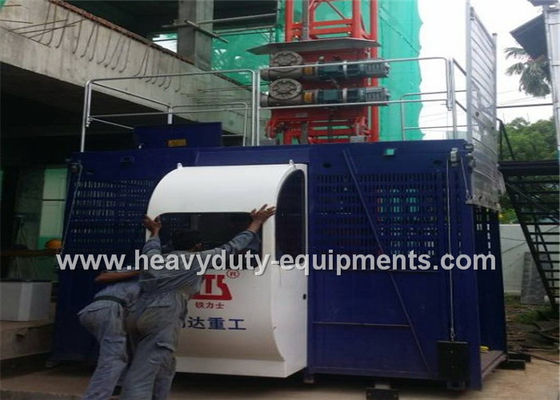

Large Image :  Construction elevators rated lifting speed 36m/min used at the site of large chimney construction

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CE/BV/CCC
Model Number: MTP200

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: NUDE
Delivery Time: 35 days before payment
Supply Ability: 100 units per month
Detailed Product Description
Rated Loading Capacity (kg): 2000 Rated Lifting Speed (m/min): 36
Rated Passenger Number: 24 Bottom Outline Dimension (mm): 3100*4200
Cage Inner Dimension (m): 3*1.3*2.5 Engine Power: 3*11

Construction elevators rated lifting speed 36m/min used at the site of large chimney construction



Model MTP200 Rated loading capacity
(kg)
2000
Rated lifting
speed (m/min)
36 Rated passenger number 24
Engine power 3*11 Cage inner dimension
(m)
3*1.3*2.5
Cage weight
(kg)
1400 Mast section weight (kg) 163
Mast section dimension (mm) 650*650*1508 Counterbalance weight (kg) -
Hanger rated lifting capacity (kg) 180

Bottom

outline dimension (mm)

3100*4200



Description:

This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers’ labor intensity.



Advantages:

  1. It is installed and dismounted conveniently and can grow as high as the building grows height. The lifter has such advantages as steady property, safety, reliability, flexible carrying, and good adaptability, etc..
  2. It is efficient and safety vertical transporting equipment.
  3. We can also supply construction elevators whose dimension of mast section is 800*800*1508mm. There are also inclined and curvilinear styles



Application:

Construction lifter is mainly used to transport people or goods to multistoried building. Building lifter applies to such construction sites as industrial and civil architecture, bridge, underground, large chimney, and ship industry, etc.
