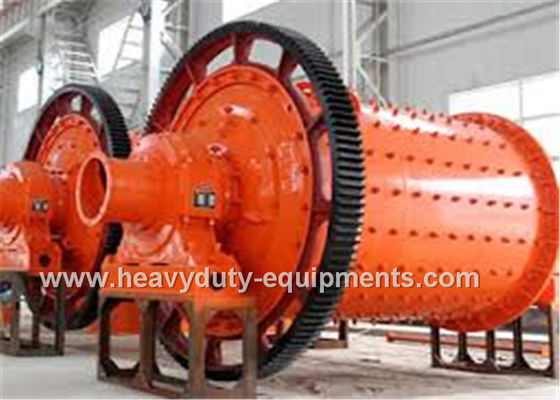

Overflow Type Wet Rod Milling Machine 3000mm Cylinder Length For First Stage Grinding

Overflow Type Wet Rod Milling Machine 3000mm Cylinder Length For First Stage Grinding

Specification:

Product Introduction:

A grinding equipment with steel rod as medium.

Product Improvement:

MTP rod mills include overflow rod mill, end peripheral discharge rod mill and center peripheral discharge rod mill, which could meet different requirement.

Advantages:

• The steel rod takes regular movement in mill
• It is convenient to install and maintain
• Rapidly discharging
• Even particle size of product, little over grinding

Product Introduction:

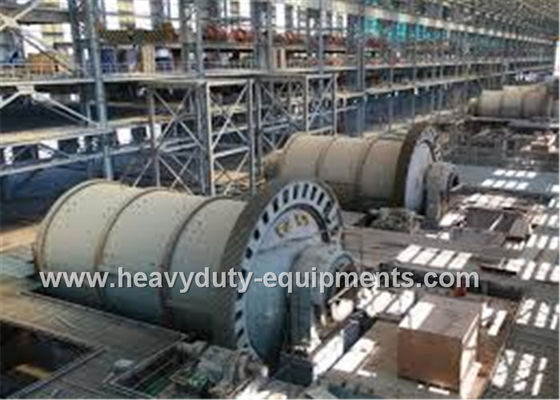

The name of rob mill is from the medium in mill is steel rob. The rob mill is generally wet overflow type used in the first stage grinding, especially in artificial sand and stone, mineral processing plant and power sector of chemical plant.

Product Principle:

The rod mill is driven by motor with speed reducer and peripheral large gear, or low speed synchronous motor with peripheral large gear. The grinding medium --- steel rod is put into the cylinder which is lifted, and then fall under the action of the centrifugal force and friction force. The materials entering into cylinder form the feeding inlet are grinded by movable grinding medium and discharged out by overflow and continuously feeding.

.
