Product Details:
Payment & Shipping Terms:
|
| Type: | Overflow Type Ball Mill | Model: | MTP2740 |
|---|---|---|---|
| Weight (kg): | 78800 | Max. Ball Load (t): | 40 |
| Effective Volume (m3): | 20.4 | Length (mm): | 11850 |
| Width (mm): | 5667 | Height (mm): | 4496 |
| High Light: | mining industry equipment,construction mining equipment |
||

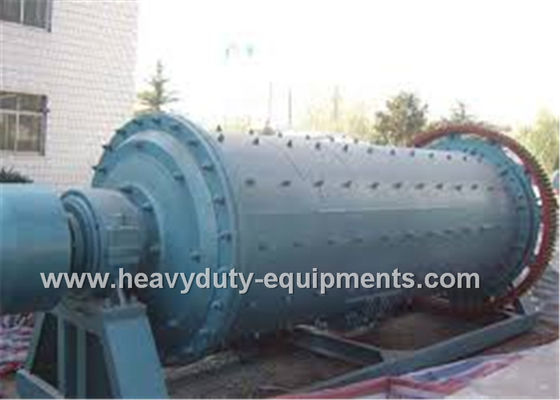

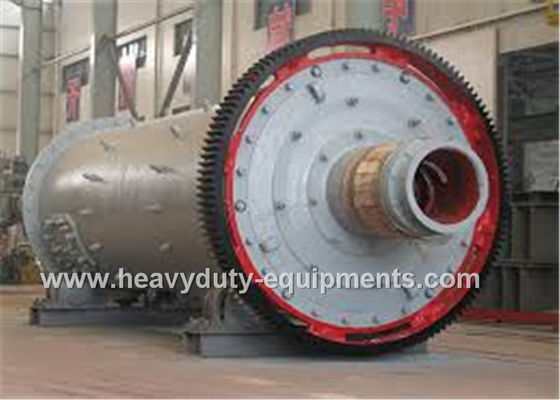

Overflow Type Ball Mill with low speed transmission easy for starting and maintenance
Specification:
| Type | Overflow Type Ball Mill |
| Model | MTP2740 |
| Cylinder Diameter (mm) | 2700 |
| Cylinder Length (mm) | 4000 |
| Motor Model | TDMK400-32 |
| Motor Power (kW) | 400 |
| Length (mm) | 11850 |
| Width (mm) | 5667 |
| Height (mm) | 4496 |
| Effective Volume (m3) | 20.4 |
| Max. Ball Load (t) | 40 |
| Weight (kg) | 78800 |
Product Introduction:
A ball mill with simple structure.
Product Improvement:
Wet type overflow ball mill is lined with SINOMTP wear-resistant rubber sheet with excellent wear resistance, long service life and convenient maintenance.
Advantages:
Products feature:
The discharging of wet type overflow ball mill relies on the inclination because of the outlet hollow shaft diameter larger than inlet hollow shaft diameter. When the slurry surface is higher than outlet generatrix, the slurry overflow discharges from the mill
