Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine

China Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine supplier

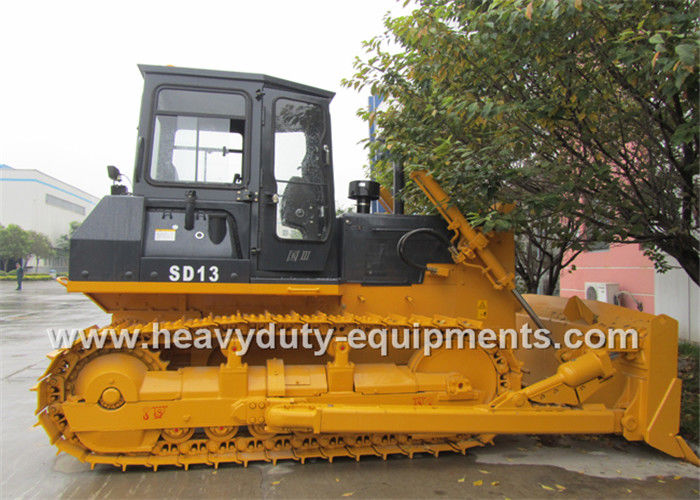

Large Image :  Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD13YE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD13YE Engine: Cummins QSB6.7
Operating Weight (Ripper Not Included): 12.8t Rated Power: 97/2200kW/rpm
Blade Type: 6 Way Blade Track Gauge: 1780mm
High Light:

shantui construction machinery

,

dozer construction equipment

Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine



Specification:



ITEM SD13YE Engine CUMMINS QSB6.7
L×W×H (Ripper not included) 4924×3060×2988mm Ripping depth of ripper --
Operating weight (Ripper not included) 12.8t --
Rated power 97/2200kW/rpm Lifting height of ripper --
Grade ability 30° Number of carriers (each side) 2
Blade type 6 way blade Number of track rollers (each side) 7
Blade width 3060mm Track gauge 1780mm
Ground length and ground pressure 2640-0.043mm/MPa
Dozing capacity 3.07m3 Pitch 190mm
Forward speed 0–10km/h
Ma× drop below ground of blade 460 mm Reverse speed 0–10km/h
Lift height of blade 1000 mm
Ripper type --



Description:



The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;



Advantage:



1. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;

2. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;

3. The single control lever can control all blade actions;

4. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;

5. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;

Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine
