Product Details:
Payment & Shipping Terms:
|
| Type: | Submerged Single Spiral Classifier | Model: | FLC-1200 |
|---|---|---|---|
| Rotating Speed Of Spiral (r/min): | 5~7 | Capacity Of Sand Return (t/d): | 1150~1640 |
| Capacity Of Overflow (t/d): | 120 | Spiral Diameter (mm): | 1200 |
| Spiral Length (mm): | 8400 | Slope Of Water Tank: | 14~18 |
| High Light: | mining industry equipment,mining safety equipment |
||

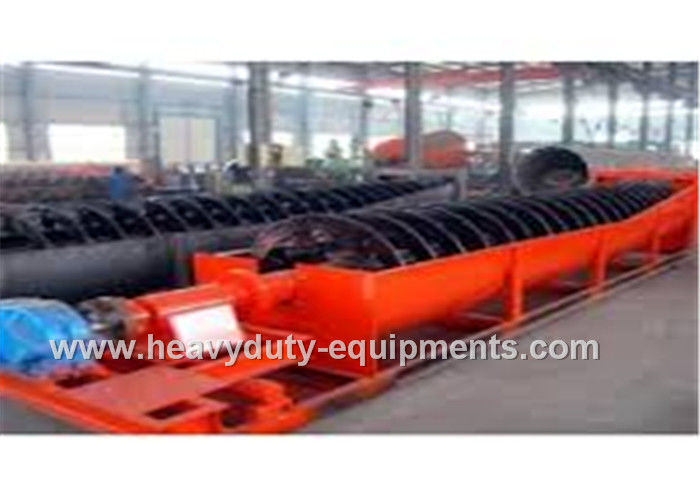

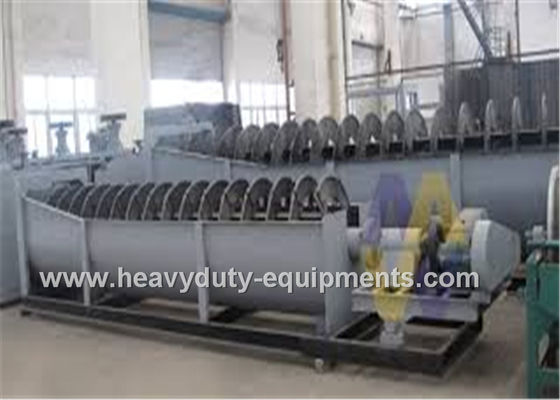

Sinomtp Submerged Single Spiral Classifier with different Rotating Speed of Spiral
Specification:
| Type | Submerged Single Spiral Classifier |
| Model | FLC-1200 |
| Rotating Speed of Spiral (r/min) | 5~7 |
| Capacity of Sand Return (t/d) | 1150~1640 |
| Capacity of Overflow (t/d) | 120 |
| Spiral Diameter (mm) | 1200 |
| Spiral Length (mm) | 8400 |
| Slope of Water Tank | 14 ~18 |
| Drive Motor Model | Y160M-6 |
| Drive Motor Power (kW) | 7.5 |
| Lifting Motor Model | Y90L-4 |
| Lifting Motor Power (kW) | 1.5 |
| Weight (kg) | 9583 |
Description:
Classification equipment---the spiral of overflow end is completely immersed below liquid level.
An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.
Application:
Submerged spiral classifier with the spiral of overflow end completely immersed below liquid level is applied in classifying ore with particle size 0.15~0.07mm
Working Principle:
Fine ore pulps are fed into water tank through feeding opening located in the center of settling zone. Beneath the inclined water tank is the ore pulp classification zone where ore pulps are stirred by low-speeded impellers. Fine ore particles are lifted up and then spilled out the overflow opening; coarse ore particles precipitate down to tank bottom and are discharged via discharge opening.
