Product Details:
Payment & Shipping Terms:
|
| Type: | Agitation Tank | Model: | GBJ-2000X2000 |
|---|---|---|---|
| Weight (kg): | 3173 | Motor Power (kW): | 7.5 |
| Motor Model: | Y160M-6 | Diameter Of Impeller (mm): | 560 |
| Rotating Speed Of Impeller (r/min): | 240 | Effective Volume (m3): | 5.46 |
| High Light: | construction mining equipment,mining safety equipment |
||
High Efficiency Industrial Mining Equipment Tank Agitator Mixer Y160M-6 motor
Specification:
| Type | High Efficiency Agitation Tank |
| Model | GBJ-2000X2000 |
| Effective Volume (m3) | 5.46 |
| Rotating Speed of Impeller (r/min) | 240 |
| Diameter of Impeller (mm) | 560 |
| Motor Model | Y160M-6 |
| Motor Power (kW) | 7.5 |
| Weight (kg) | 3173 |
Description:

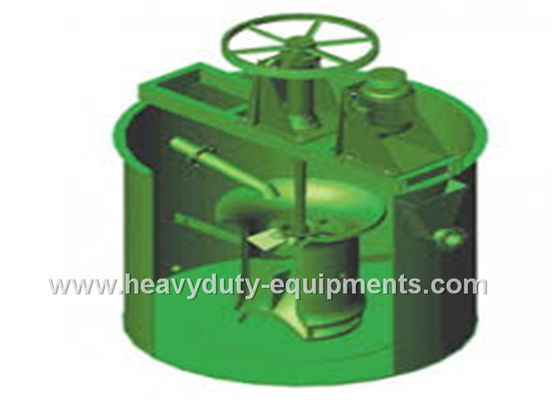

Agitation equipment which forces the slurry to take up and down circulation.Umbrella shaped impeller presses the slurry, so that the slurry takes up and down circulation along draft tube, which makes reagents and slurry mix well
Application:

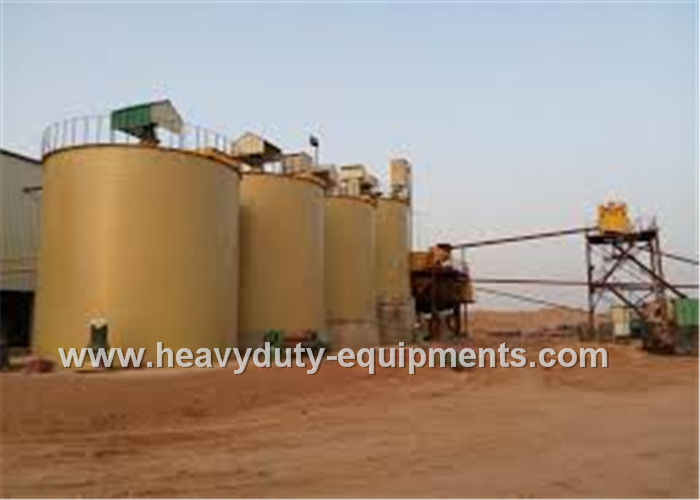

Agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.
Advantage:
1.Advanced structure of impeller, strong stirring ability
2.The impeller of high efficiency agitation tank adopts umbrella shaped with large diameter and linear velocity to enhance the agitation and circulation capability.
3.The enhancement of circulation capability improves floatation index
4.The baffle can compress negative pressure to a limited space and improve suction capability. As a result, the circulation capacity is enhanced.
