|Production:||Ultra-fine Vertical Roller Mill||Wheel Diameter:||1200mm|
|Capacity:||7-16 T/h||Fineness 400~650Mesh:||~D97|
|Material Size:||< 10mm||Roller:||3 Set|

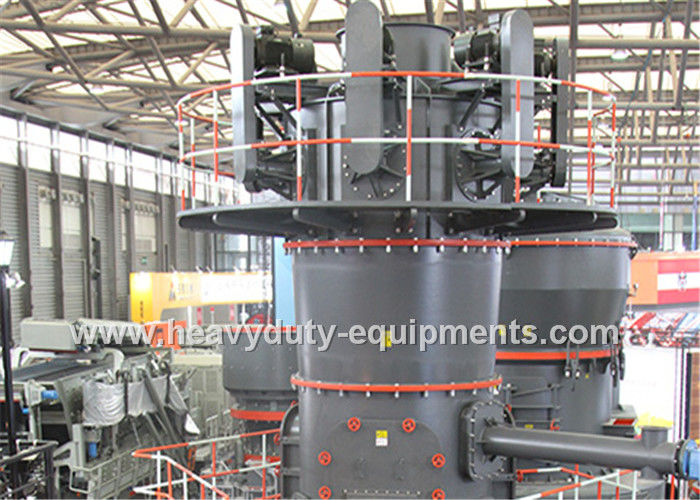

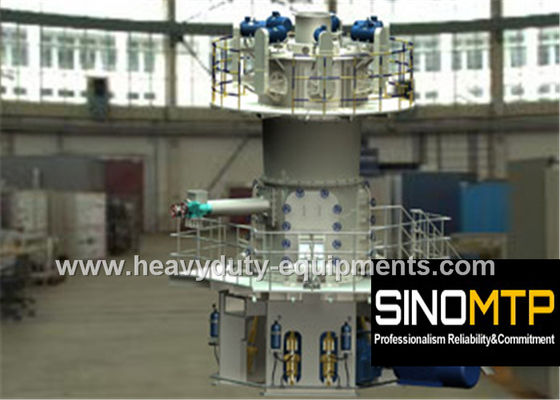

Automatic Control Ultra Fine Vertical Roller Mill 1200mm Wheel Diameter 3 Set Roll
|Production||Ultra-fine Vertical Roller Mill|
|Material Size(mm)||< 10|
|Main Motor Power(KW)||315|
|Classifier Motor Power||15 KWx7|
Ultra-fine Vertical Roller Mill adopts SINOMTP abundant experience in producing vertical grinding mill and the latest technology from Taiwan &Germany. It sets grinding, drying, classifying and transportation as a whole and has been become the Mainstream equipment in ultra-fine grinding industry.
1. It is of little dust and noise, achieving Environmental Protection Request, it is quite environmentally friendly
2. Utilize advanced working principle and reduce the grinding time, as a result, the final products has little iron and the whiteness and purity are raised.
3. LUM has excellent grinding-efficiency for the special design of roller shell and grinding plate curve.
4. Low investment cost: LUM use PLC/DCS automatic control system, well save the cost of operators.
LUM Series Ultra-fine Vertical Roller Mills are widely used in grinding non-flammable and non-explosive materials under 9.3(the Moh's hardness), such as grinding quartz, feldspar, calcite, talcum, barite, fluorite, iron ore, copper ore quartz, slag, cement clinker, zircon sand, fly ash and carborundum, coal, etc.
