Product Details:
Payment & Shipping Terms:
|
| Maximum Theoretical Pumping Capacity: | 88~49m3 | Maximum Theoretic Output Pressure: | 8~16MPa |
|---|---|---|---|
| Concrete Distribution Valve: | “S” Valve | Overall Dimensions (LxWxH): | 6930x2110x2640mm |
| Gross Weight: | 7200Kg | Diesel Engine Brand: | VOLVO |
| High Light: | construction heavy equipment,industrial construction equipment |
||

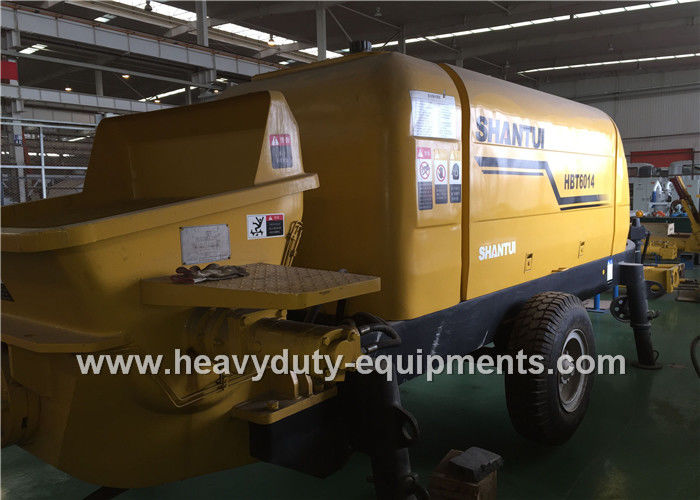

SHANTUI HBT8016R concrete pump trailer adopts original VOLVO diesel engine
| Model | HBT8016RTrailer Pump Series | Unit | Specification |
| Pumping system | Maximum theoretical pumping capacity | m | 88~49 |
| Maximum theoretic output pressure | Mpa | 8~16 | |
| Concrete distribution valve | S valve | ||
| Concrete slump range | mm | 80~230 | |
| Bore x travel of pumping cylinder | mm | 200x1800 | |
| Bore x travel of main cylinder | mm | 140x1800 | |
| Hopper capacity/loading height | L/mm | 800/1470 | |
| Maximum aggregate size | mm | 40(125A) | |
| Power system | Power/speed | kW/r/min | 174/2300 |
| Diesel engine brand | VOLVO | ||
| Other | Gross weight | Kg | 7200 |
| Overall dimensions (LxWxH) | mm | 6930x2110x2640 |
Description:
Advantage:
1. The double-pump double-circuit open hydraulic system is adopted, in which the main pumping line and the S valve swing line are independent with each other to simplify the system and realize higher reliability. The main oil pumps and valves adopt world’s renowned brand products to realize high system stability and reliability.
2. The full-hydraulically controlled reversing technology guarantees more reliable and stable reversing motions for the main pumping line.
3. The automatic high/low pressure switchover and the manual high/low pressure switchover are at your choice, featuring convenient operations.
4. The automatic retraction function of concrete piston can retract the concrete piston to the washer chamber to greatly ease the checking, repair, and replacement of the concrete piston.
5. The S-pipe valve is adopted, in which the S-pipe is bead welded from imported wear-resistant welding rods and the shaft end is treated by nitriding of high strength alloy steel to prevent the rupture of shaft end and promote its service life. The wearing plate and the cutting ring are made of wear-resistant hard alloy to remarkably improve the service life.
6. The main electric control units adopts the original imported products (such as German Siemens products) to guarantee the reliability of the units.
