Product Details:
Payment & Shipping Terms:
|
| Type: | Gravity Separation Equipment Concentrating Table | Model: | XS 7.6 |
|---|---|---|---|
| Bed Surface Type: | Coarse Sand Bed Surface | Beneficiation Area Of Bed Surface (m2): | 7.6 |
| Max. Feed Size (mm): | 2 | Capacity (t/h): | 1 ~1.8 |
| Feed Density (%): | 20 ~30 | Stroke (mm): | 16 ~22 |
| High Light: | construction mining equipment,mining safety equipment |
||

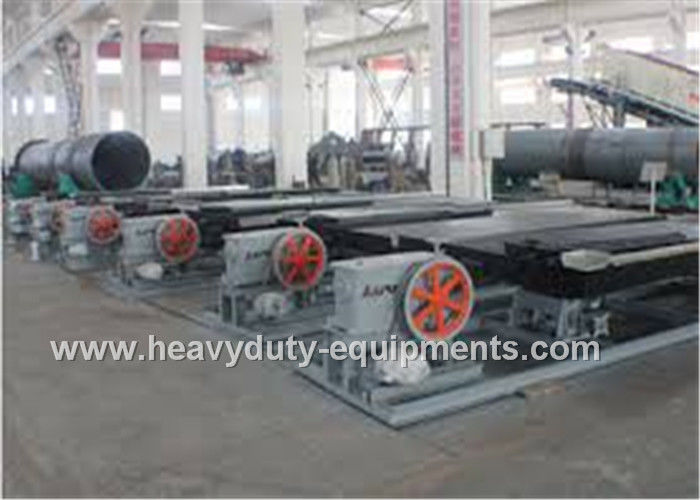

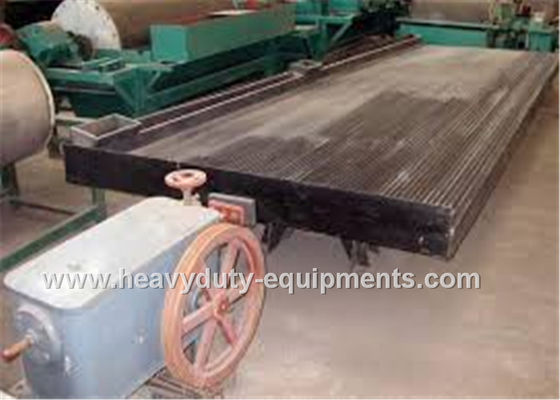

Sinomtp Gravity Separation Equipment Concentrating Table with three bed surface
Specification:
| Item | XS 7.6 | XS 4.08 | XS 1.95 | |
| Bed Surface Type | Coarse Sand Bed Surface | Fine Sand Bed Surface | Slurry Bed Surface | |
| Beneficiation Area of Bed Surface (m2) | 7.6 | 7.6 | 7.6 | |
| Bed Surface Dimension | Length (mm) | 4500 | 4500 | 4500 |
| Width of Driving End (mm) | 1850 | 1850 | 1850 | |
| Width of Concentration End (mm) | 1550 | 1550 | 1550 | |
| Max. Feed Size (mm) | 2 | 0.5 | 0.074 | |
| Capacity (t/h) | 1 ~1.8 | 0.5 ~1 | 0.3~0.5 | |
| Feed Density (%) | 20 ~30 | 18 ~25 | 15 ~20 | |
| Stroke (mm) | 16 ~22 | 11 ~16 | 8~16 | |
| Jig Frequency (r/min) | 220 | 250 | 280 | |
| Water Consumption (t/h) | 0.7 ~1 | 0.4 ~0.7 | 0.4 ~0.7 | |
| Notch Groove Section Shape | Rectangle | Sawtooth Wave | Triangle | |
| Motor Power (kW) | 1.1 | 1.1 | 1.1 | |
Description:
Concentrating table is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion.The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm; jig frequency is controlled by the smoothing motor pulley.
Work Principle:
The working principle of gold concentrating table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Advantage:
1. The large range of transverse slope adjustment(0～10°),adjustable stroke；
2. Keep the stably operation when change the transverse slope and stroke
3. Spring is arranged in the case with compact structure
4. Without reagents consumption, little electricity consumption
