|Maximum Theoretical Pumping Capacity:||55m3||Maximum Theoretic Output Pressure:||6.7MPa|
|Concrete Distribution Valve:||Inclined Gate Valve||Concrete Slump Range:||80~230mm|
|Bore X Travel Of Pumping Cylinder:||195x1400mm||Bore X Travel Of Main Cylinder:||90x1400mm|

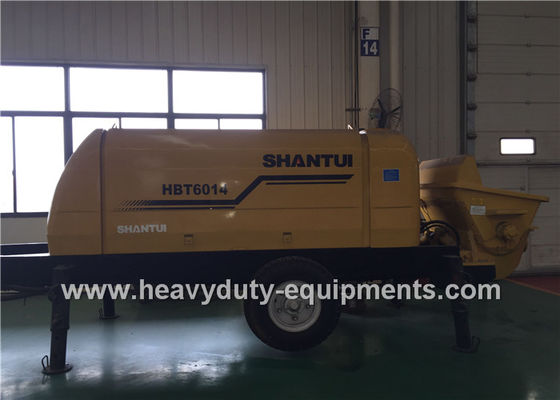

SHANTUI HBT60 concrete pump trailer adopts the inclined gate valve, featuring good adaptability to concrete
|Mode||HBT60 (New) Trailer Pump Series||Unit||Specification|
|Pumping system||Maximum theoretical pumping capacity||m3||55|
|Maximum theoretic output pressure||Mpa||6.7|
|Concrete distribution valve||Inclined gate valve|
|Concrete slump range||mm||80~230|
|Bore x travel of pumping cylinder||mm||195x1400|
|Bore x travel of main cylinder||mm||90x1400|
|Hopper capacity/loading height||L/mm||450/1400|
|Maximum aggregate size||mm||40(125A)|
|Overall dimensions (LxWxH)||mm||6450x1820x2150|
This product adopts the inclined gate valve, featuring good adaptability to concrete. The main hydraulic pump adopts constant power variable pump so that the concrete delivery volume can be adjusted manually or automatically depending on the construction needs to reasonably utilize the motor power. High pressure high displacement water pump is adopted to clear the residual concrete from the delivery pipe.
1. The automatic retraction function of concrete piston can retract the concrete piston to the washer chamber to greatly ease the checking, repair, and replacement of the concrete piston.
2. The S-pipe valve is adopted, in which the S-pipe is bead welded from imported wear-resistant welding rods and the shaft end is treated by nitriding of high strength alloy steel to prevent the rupture of shaft end and promote its service life. The wearing plate and the cutting ring are made of wear-resistant hard alloy to remarkably improve the service life.
3. The main electric control units adopts the original imported products (such as German Siemens products) to guarantee the reliability of the units.
