|Maximum Theoretical Pumping Capacity:||55m3||Maximum Theoretic Output Pressure:||8MPa|
|Concrete Distribution Valve:||Inclined Gate Valve||Overall Dimensions (LxWxH):||6650x2110x2260mm|

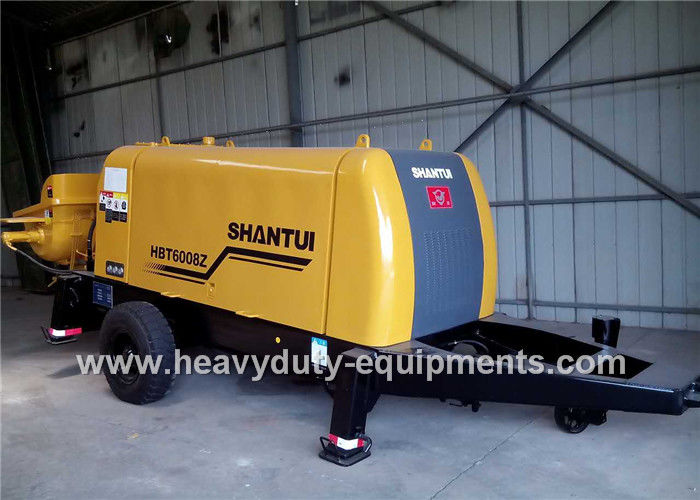

SHANTUI HBT6008Z trailer pump adopted to achieve good concrete suction performance
|Model||HBT6008Z Trailer Pump Series||Unit||Specification|
|Pumping system||Maximum theoretical pumping capacity||m3||55|
|Maximum theoretic output pressure||Mpa||8|
|Concrete distribution valve||Inclined gate valve|
|Concrete slump range||mm||80~230|
|Bore x travel of pumping cylinder||mm||200x1650|
|Bore x travel of main cylinder||mm||100x1650|
|Hopper capacity/loading height||L/mm||450/1470|
|Maximum aggregate size||mm||40(125A)|
|Overall dimensions (LxWxH)||mm||6650x2110x2260|
This product adopts the inclined gate valve, featuring good adaptability to concrete. The main hydraulic pump adopts constant power variable pump so that the concrete delivery volume can be adjusted manually or automatically depending on the construction needs to reasonably utilize the motor power. High pressure high displacement water pump is adopted to clear the residual concrete from the delivery pipe.
1. The inclined gate valve is adopted to achieve good concrete suction performance.
2. The hydraulic valves adopt original world’s renowned brand products, featuring better performances.
3. The electric system adopts non-contact control mode and the programmable logic controllers (PLC) adopt originally imported products.
4. New mixing mechanism adopts double hydraulic motor drive, reliable concrete mortar isolation technology, and highly wear-resistant processes to improve the drive performance.
5. The structure of splayed outriggers achieves more stable pumping operations.
