Product Details:
Payment & Shipping Terms:
|
| Type: | Magnetic Separator | Model: | CTBY1030 |
|---|---|---|---|
| Capacity: | 8-240t/h | Equipment Length (mm): | 4460 |
| Equipment Width (mm): | 2250 | Equipment Height (mm): | 1750 |
| Total Weight (t): | 7.1 | Motor Power (kW): | 7.5 |
| High Light: | construction mining equipment,mining safety equipment |
||

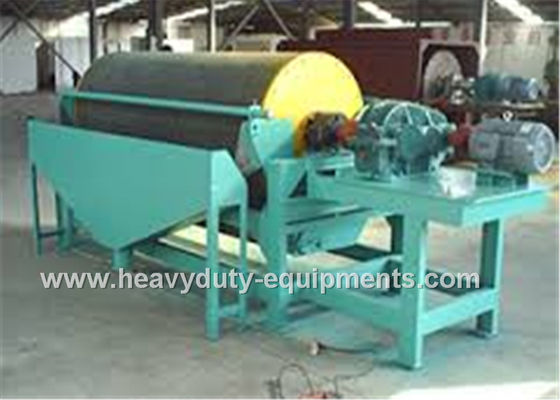

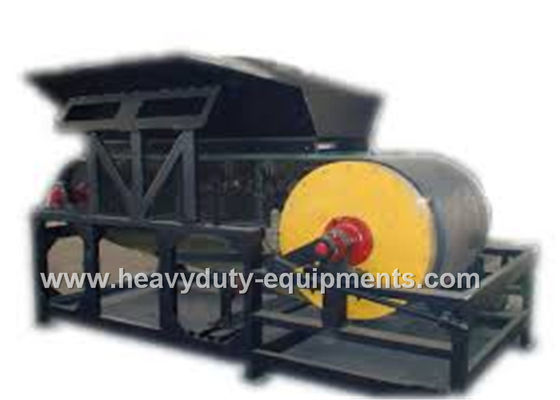

Magnetic Separator with 8-240t/h capacity and 7.5kw power of drying ore
Specification:
| Model & Spec. | CTBY1030 |
| Diameter of Cylinder (mm) | 1000 |
| Length of Cylinder (mm) | 3000 |
| Surface Magnetic Density (mt) | 350~550 |
| Rotating Speed of Cylinder (r/min) | 23 |
| Capacity of Dry Ore (t/h) | 82~124 |
| Feed Size (mm) | 0-10 |
| Slurry Density (%) | 20 ~50 |
| Motor Power (kW) | 7.5 |
| Total Weight (t) | 7.1 |
| Equipment Length (mm) | 4460 |
| Equipment Width (mm) | 2250 |
| Equipment Height (mm) | 1750 |
| Capacity | 8-240t/h |
Description:
A wet permanent magnetic separator for separating strong magnetic minerals.
1.Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100～600mT
2.The same cylinder can be equipped with three types of tank adapting to different dressing process.
3.Small area taken, good separation for magnetic mineral, reduce the load of next process.
4.The surface of the cylinder is lined with wear-resistant rubber.
This machine is widely used in mineral processing, coal washing and chemical industries for strong magnetic minerals that wet classification size ranges from 0 to 6 mm, and divides the minerals into magnetic and non-magnetic materials. It often processes strongly magnetic materials such as magnetite, magnetic pyrite etc..
