Product Details:
Payment & Shipping Terms:
|
| Type: | Dry Separator | Model: | MTP-D0812 |
|---|---|---|---|
| Diameter Of Cylinder (mm): | 800 | Length Of Cylinder (mm): | 1200 |
| Surface Magnetic Density (mt): | 300~500 | Feed Moisture Content: | < 5% |
| Capacity (t/h): | < 100 | Overall Dimension (LXWXH) (mm): | 3400X2000X2100 |
| High Light: | construction mining equipment,mining safety equipment |
||

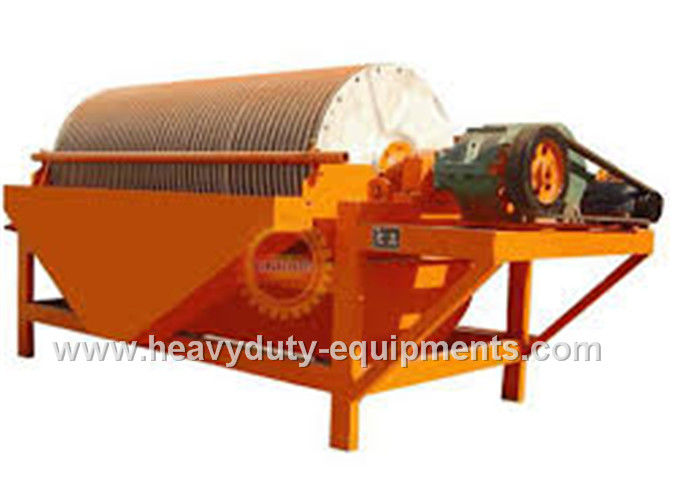

Dry separator with eccentric rotating magnetic system of 150t/h capacity
Specification:
| Model & Spec. | MTP-D0812 |
| Diameter of Cylinder (mm) | 800 |
| Length of Cylinder (mm) | 1200 |
| Surface Magnetic Density (mt) | 300~500 |
| Feed Size (mm) | -30 |
| Feed Moisture Content | < 5% |
| Capacity (t/h) | < 100 |
| Motor Power (kW) | 11X2 |
| Total Weight (t) | 5.8 |
| Overall Dimension (LXWXH) (mm) | 3400X2000X2100 |
| capacity | ≤150t/h |
Description:
A self-developed patent products - Dry Magnetic Separator.
1, This patented product is a kind of upgrading equipment based on conventional magnetic roller or conventional dry separator.
2, This patented product solves the eddy current heating problem, ore sticking problem for separation cylinder, and mine unloading problem of conventional 360 degree rotating magnetic dry separator.
3,Covering the magnetic system with non-magnetic stainless steel ensures no peeling off of the magnet.
4, The separation cylinder is covered with the super wear-resistant rubber produced by our company, thus the service life can be prolonged significantly.
As shown in the figure, the separation cylinder without belt outside will enhance the intensity of magnetic field of the separation area. The rotating magnetic system (wrap angle of 360 degree) is set inside the separation cylinder, while the fixed magnetic system (magnetic wrapping angle of less than 90 degree) is set inside the ore dumping cylinder. The rotation direction of the separation cylinder is as the same as that of the ore dumping, but is opposite to that of the rotating magnetic system.
