Product Details:
Payment & Shipping Terms:
|
| Type: | Efficient Improved Thickener | Model: | MTP-E9 |
|---|---|---|---|
| Tank Diameter (mm): | 9000 | Tank Depth (mm): | 3367 |
| Subsidence Area (m2): | 63 | Capacity (t/d): | 210 |
| Motor Model: | Y132S-6 | Motor Power (kW): | 3 |
| High Light: | mining industry equipment,mining safety equipment |
||

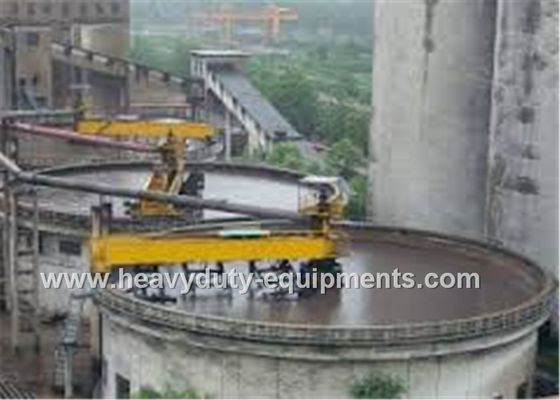

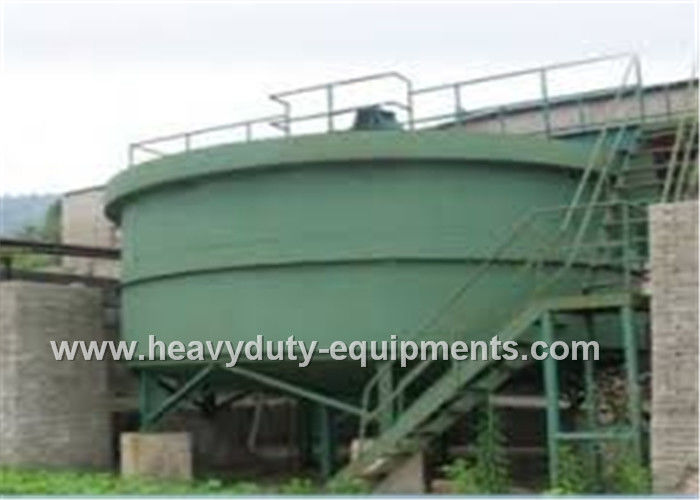

Efficient Improved Thickener with 9000mm Tank Diameter and 210t/d capacity
Specification:
| Model | MTP-E9 |
| Tank Diameter (mm) | 9000 |
| Tank Depth (mm) | 3367 |
| Subsidence Area (m2) | 63 |
| Capacity (t/d) | 210 |
| Motor Model | Y132S-6 |
| Motor Power (kW) | 3 |
| Steel Tank Weight (kg) | 15418 |
| Weight (kg) | 21733 |
| Capacity | 5-1400t/d |
Description:
A new efficient thickener independently developed by SINOMTP.
1.Out overflow weir instead of inner overflow weir increases the sedimentation area and not easy to block.
2.Oblique feeding instead of horizontal feeding solves the blockage problem.
3.A tranquil flow device reduces material flow rate, so that the overflow becomes more uniform with lower turbidity.
4.After improvement, the capacity becomes larger, overflow with low turbidity and discharge with high concentration.
