Product Details:
Payment & Shipping Terms:
|
| Model: | SD16YR | Engine: | Cummins QSB6.7 |
|---|---|---|---|
| Operating Weight (Ripper Not Included): | 17.44t | Blade Type: | Power Angle |
| Blade Width: | Power Angle 3860mm | Dozing Capacity: | Power Angle 4.4m3 |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

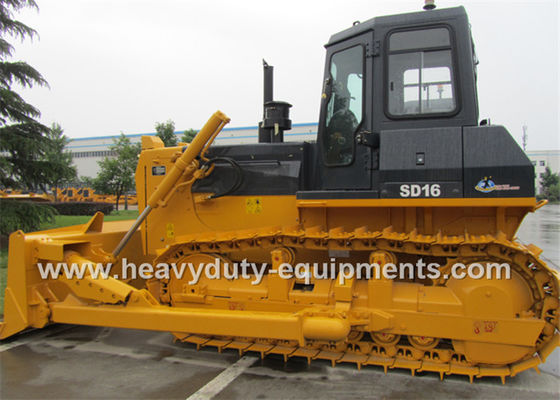

3860mm Power Angle Blade Construction Bulldozer 17.44T With Sealed Shock Absorbing Cabin
Specification:
| ITEM | SD16YR | Engine | Cummins QSB6.7 |
| L×W×H (Ripper not included) | 5665×3860×3065mm | Ripping depth of ripper | - |
| Operating weight (Ripper not included) | 17.44t | - | |
| Rated power | 120/2100kW/rpm | Lifting height of ripper | - |
| Grade ability | 30° | Number of carriers (each side) | 2 |
| Blade type | Power angle | Number of track rollers (each side) | 8 |
| Blade width | Power angle 3860mm | Number of track shoes (each side) | 43 |
| Width of track shoe | 810mm | ||
| Track gauge | 2360mm | ||
| Ground length and ground pressure | 2675-0.343mm/MPa | ||
| Dozing capacity | Power angle 4.4m3 | Pitch | 203mm |
| Forward speed | 0–10km/h | ||
| Max drop below ground of blade | 650 mm | Reverse speed | 0-10km/h |
| Lift height of blade | 1025 mm |
Description:
SD16YR low ground pressure full-hydraulic bulldozer is mainly applied for the digging, backfill, and modeling of earthwork under general and wetland conditions and for the handling of other materials and is suitable for the operations of roads,railways, water conversancy projects, land development, and factories and Landfill.
Advantage:
The engine conforms to the emission regulations of EU Stage mB and U.S. EPA Tier4i. The two-circuit electronically controlled static pressure drive system can intelligently adapt to the load variation and realize loaded steering and pivot steering, featuring high working flexibility and efficiency and low fuel consumption. The power angle/tilt (PAT) blade and single-joystick palm command system equipped feature simple and flexible operations. The sealed shock-absorbing cab features broad visual field and reduces the interior noise to achieve a comfortable driving environment. The safe locking function for traveling and working devices and the machine safety passage system are provided to improve the operation safety. The modular structure features low malfunction rate and easy maintenance.
