Earth Movers Equipment Crawler Bulldozer Hydraulic Control 1095mm blade Lift height

China Earth Movers Equipment Crawler Bulldozer Hydraulic Control 1095mm blade Lift height supplier

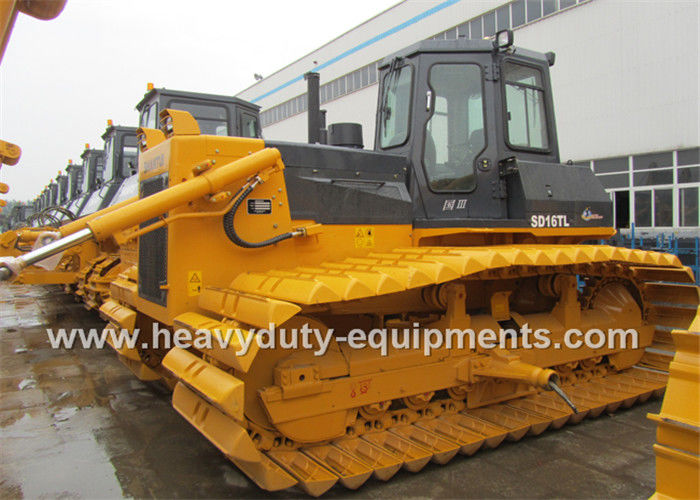

Large Image :  Earth Movers Equipment Crawler Bulldozer Hydraulic Control 1095mm blade Lift height

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD16C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD16C Engine: Weichai WD10G178E25
Operating Weight (Ripper Not Included): 16.8t Ripper Type: Three-shank Ripper
Ripping Depth Of Ripper: Three-shank Ripper 572mm Lifting Height Of Ripper: Three-shank Ripper 592mm
High Light:

dozer construction equipment

,

heavy equipment bulldozer

Earth Movers Equipment Crawler Bulldozer Hydraulic Control 1095mm blade Lift height





Specification:



ITEM SD16C Engine Weichai WD10G178E25
L×W×H (Ripper not included) 5500×3900×3100mm Ripping depth of ripper Three-shank ripper 572mm
Operating weight (Ripper not included) 16.8t
Rated power 120/1850kW/rpm Lifting height of ripper Three-shank ripper 592mm
Gradeability 30° Number of carriers (each side) 2
Blade type U-blade Number of track rollers (each side) 6
Blade width U blade 3900×1200mm Number of track shoes (each side) 37
Width of track shoe 610mm
Track gauge 1880mm
Ground length and ground pressure 2430-0.056mm/MPa
Dozing capacity U blade 7.5m3 Pitch 203.2mm
Forward speed 0–3.29km/h
0–5.82km/h
0–9.63km/h
Max drop below ground of blade 530 mm Reverse speed 0–4.28km/h
Lift height of blade 1095 mm 0–7.59km/h
Ripper type Three-shank ripper 0–12.53km/h



Description:



The SD16 -3 (CE) bulldozer was developed by Shantui to meet the strict emission requirements in Europe.



Advantage:



With an imported engine and a hydraulic control fan, the machine is equipped with a mechanical drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation, making the SD16 the ideal construction machine for earth moving projects.The safe locking function for traveling and working devices and the machine safety passage system are provided to improve the operation safety. The modular structure features low malfunction rate and easy maintenances.

Earth Movers Equipment Crawler Bulldozer Hydraulic Control 1095mm blade Lift height
