| Type: | Peripheral Transmission Thickener | Model: | MTP-PT24 |
|---|---|---|---|
| Thickening Tank Diameter (mm): | 24000 | Capacity (t/d): | 226〜1000 |
| Thickening Tank Center Depth (mm): | 3400 | Subsidence Area (m2): | 452 |
| Motor Model: | Y160M-6 | ||
| High Light: | construction mining equipment,mining safety equipment |
||

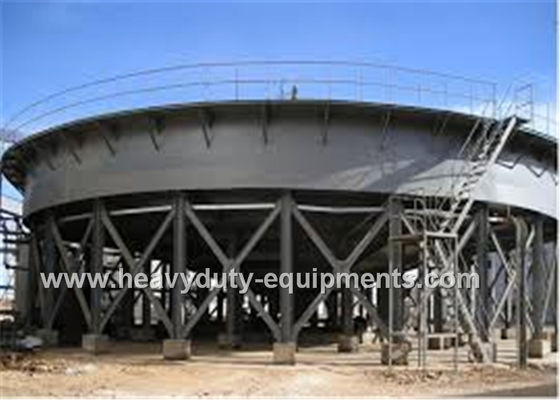

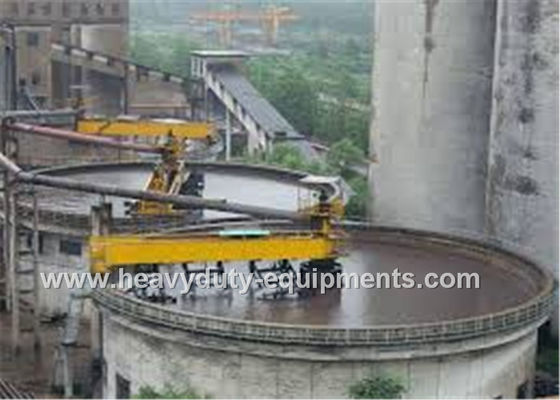

Peripheral Transmission Thickener PT24 type with 226〜1000t/d capacity
Specification:
| Model | MTP-PT24 |
| Thickening Tank Diameter (mm) | 24000 |
| Thickening Tank Center Depth (mm) | 3400 |
| Capacity (t/d) | 226〜1000 |
| Subsidence Area (m2) | 452 |
| Motor Model | Y160M-6 |
| Motor Power (kW) | 7.5 |
| Weight (kg) | 24000 |
| Capacity | 87～3000t/d |
Description:
Peripheral transmission thickener has two kinds, peripheral roller transmission and peripheral gear transmission
1.Unique bridge design, excellent rigid strength and strong overload capacity.
2.Peripheral roller transmission, low energy consumption, stable and reliable operation.
3.Simple operation, convenient maintenance and remote control.
4.Single row cross column rotary support or single row four point contact ball rotary support, collector device with good insulation, exposed rotary parts with light shield.
The machine is suitable for dealing with large capacity and light density products. Mainly used for condensing concentrate and dewatering the tailings. It can be also used for condensing and cleaning the pulp with solid particles in coal, chemical, building materials and sewage treatment system.
