Product Details:
Payment & Shipping Terms:
|
| Type: | Tilted Plate Thickener | Model: | MTP-TP500 |
|---|---|---|---|
| Subsidence Area (m2): | 500 | Cone Hopper Number: | 1 |
| Length (mm): | 7710 | Width (mm): | 11500 |
| Height (mm): | 8500 | ||
| High Light: | mining industry equipment,mining safety equipment |
||

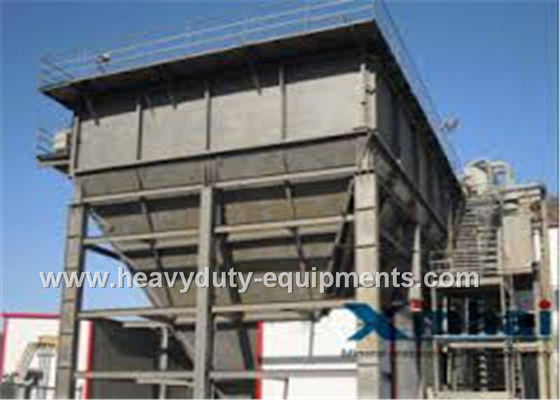

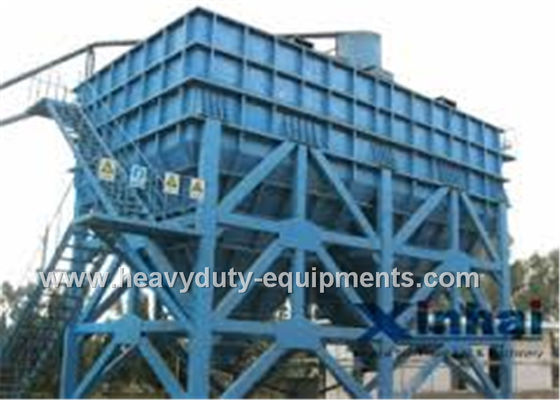

Tilted Plate Thickener TP500 type with 1 cone hopper use for clearing cola slime
Specification:
| Model | MTP-TP500 |
| Subsidence Area (m2) | 500 |
| Cone Hopper Number | 1 |
| Length (mm) | 7710 |
| Width (mm) | 11500 |
| Height (mm) | 8500 |
| Sedimentation Area | 20～3500m2 |
Description:
A slurry gravity thickener designed with tilted plate in sedimentation area.
1.The vibrator reduces the blockage by high frequency vibration and impact
2.Installing underflow valve to increase the concentration of underflow
3.The tilted plates installed in thickener are good for large equipment.
4. Reducing the height which improve capacity by 2-3 times.
1.Mineral liquid is mixed uniformly and then carried into thickener. By the action of cohesive and gravitational force, the majority of overflows are overflowed through the overflow groove.
2.The minority of overflows form small cyclone inside the settling area and subsequently are compressed in the compressive area. As a result, granules are compressed by gravity and then fall down, while clear liquid moves upward.
3.Concentrations are discharged from the lower underflow tube.
