| Type: | Cylindrical External Filtration Type Vacuum Filter | Model: | GYW-8 |
|---|---|---|---|
| Filter Area: | 8 | Cylinder Spec. (mm): | φ2000X1400 |
| Cylinder Rotating Speed (r/min): | 0.5-2 | Magnetic Induction (mt): | 82 |
| Filter Cake Moisture (%): | 5-15 | SuckingRate (m3/min.m2): | 1 |
| High Light: | construction mining equipment,mining safety equipment |
||

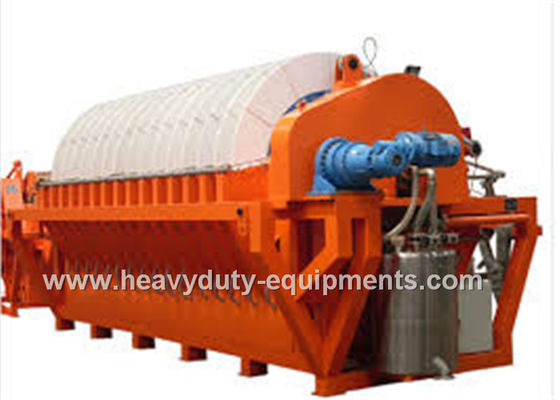

Cylindrical external filtration type vacuum filter with simple structure of 8 Filter
Specification:
| Model | GYW-8 |
| Filter Area | 8 |
| Cylinder Spec. (mm) | φ2000X1400 |
| Cylinder Rotating Speed (r/min) | 0.5-2 |
| Magnetic Induction (mt) | 82 |
| Filter Cake Moisture (%) | 5-15 |
| SuckingRate (m3/min.m2) | 1 |
| Gauge Pressure (kg/cm2) | 0.1-0.3 |
| Capacity (t/h) | 22-45 |
| Motor Model | Y100L-6 |
| Motor Power (kW) | 1.5 |
| Filtering Area | 3～50m2 |
Description:
A traditional external filtration type vacuum filter.
1.Cylindrical external filtration type vacuum filter is normal filter realizing stepless speed change by adjusting the motor revolution.
2.It has the advantages of simple structure, low price, convenient operation, little wearing parts etc.
3. The cylinder is wrapped in filter cloth in order to ensure the sealing between each chamber.
4. Polypropylene plastic plate, light weight, corrosion resistance, stepless speed regulation, change spindle speed according to different needs.
1.The cylinder is main part of filter. The large size cylinder is made of welded steel plate, the small size made of cast cylinder, and some old-fashioned filter cylinder made of thick wood.
2.There is a pipe at one end of the cylinder body which has the same number of channels with chambers.Each channel connects with corresponding filter chamber. The transmission mechanism drives the cylinder, and could transform several speeds.
