Product Details:
Payment & Shipping Terms:
|
| Model: | SD16F | Engine: | Shangchai SC11CB184G2B1 |
|---|---|---|---|
| Operating Weight (Ripper Not Included): | 17.5t | Blade Type: | Angle Blade |
| Blade Width: | Angle Blade 3970×1040mm | Dozing Capacity: | Angle Blade 4.3m3 |
| High Light: | shantui construction machinery,dozer construction equipment |
||

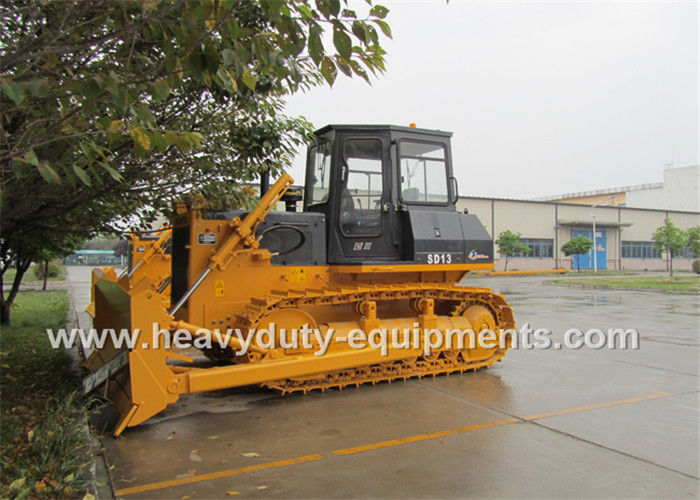

Forest Hantui Crawler Dozer Construction Equipment With Front Extending ROPS Canopy
Specification:
| ITEM | SD16F | Engine | Shangchai SC11CB184G2B1 |
| L×W×H (Ripper not included) | 5345×3388×3032mm | Ripping depth of ripper | Three-shank ripper 572mm |
| Operating weight (Ripper not included) | 17.5t | ||
| Rated power | 120/1850kW/rpm | Lifting height of ripper | Three-shank ripper 592mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Angle blade | Number of track rollers (each side) | 7 |
| Blade width |
Angle blade 3970×1040mm |
Number of track shoes (each side) | 39 |
| Width of track shoe | 560mm | ||
| Track gauge | 1880mm | ||
| Ground length and ground pressure | 3388×1149mm/MPa | ||
| Dozing capacity | Angle blade 4.3m3 | Pitch | 203.2mm |
| Forward speed | 0–3.29km/h | ||
| 0–5.82km/h | |||
| 0–9.63km/h | |||
| Max drop below ground of blade | 540 mm | Reverse speed | 0–4.28km/h |
| Lift height of blade | 1095 mm | 0–7.59km/h | |
| Ripper type | Three-shank ripper |
Description:
The SD16F forest bulldozer has been developed for operation in forests.
Advantage:
The SD16F is equipped with a hydraulic drive system with hydraulic control technology, a front-extending ROPS canopy, and an advanced structure, providing reliable performance and convenient and flexible operation, and easily adapting it to operations in the forest.The power angle/tilt (PAT) blade and single-joystick palm command system equipped feature simple and flexible operations.
