Product Details:
Payment & Shipping Terms:
|
| Type: | Ceramic Filter | Model: | TC-27 |
|---|---|---|---|
| Filter Area (m2): | 27 | Number Of Filter Disc (Circle): | 9 |
| Number Of Filter Plate (Piece): | 108 | Tank Volume (m3): | 5.0 |
| Installed Power (kW): | 17.0 | Operation Power (kW): | 11.0 |
| High Light: | mining industry equipment,construction mining equipment |
||

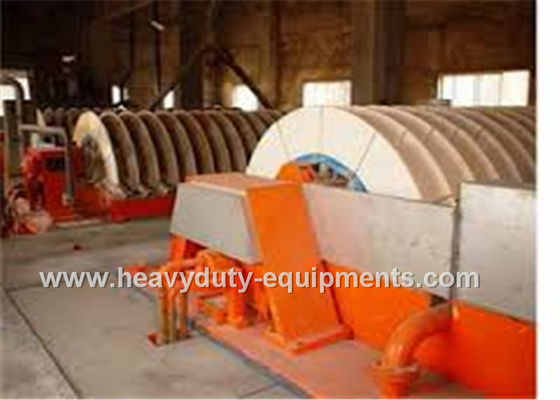

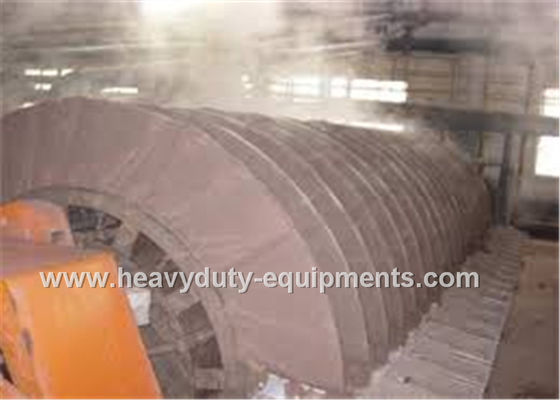

TC-27 Ceramic Filter with 11.0kw operation power used of ferrous metal
Specification:
| Model | TC-27 |
| Filter Area (m2) | 27 |
| Number of Filter Disc (Circle) | 9 |
| Number of Filter Plate (Piece) | 108 |
| Tank Volume (m3) | 5.0 |
| Installed Power (kW) | 17.0 |
| Operation Power (kW) | 11.0 |
| Main Frame (LXWXH) (m) | 5.2X3.0X2.6 |
| Filtering Area | 1～150m2 |
Description:
A vacuum dewatering filter relying on microporous ceramic.
Advantages:
1.High vacuum degree (vacuum degree -0.09~-0.098MPa), low moisture of cake.
2.High filtration precision, solid content of filtrate<50ppm, which can be recycle used in the system.
3.Energy saving up to 90%, low energy consumption, low running cost.
4.Filter cake cleaning system is installed.
5.PLC and computer integrate with automatic valve control; high degree of automation and low labor intensity.
Work Principle:
Pulp absorbing area: filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate.
