Product Details:
Payment & Shipping Terms:
|
| Model: | KZG300/1600-U | Filter Area (m2): | 70 |
|---|---|---|---|
| Spec. Of Membrane Filter Plate (mm): | 1600X1600X85 | Filter Cake Thickness (mm): | 40 |
| Volume Of Filter Chamber (m3): | 6.09 | Filter Pressure (MPa): | 0.5~1.6 |
| Overall Dimension (mm): | 14040X3240X2965 | ||
| High Light: | mining industry equipment,mining safety equipment |
||

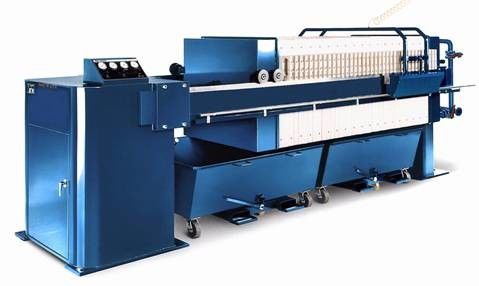

Chamber filter press takes filter cloth as the medium to separate solid and liquid
Specification:
| Model | KZG300/1600-U |
| Filter Area (m2) | 300 |
| Number of Filter Chamber | 70 |
| Spec. of Membrane Filter Plate (mm) | 1600X1600X85 |
| Filter Cake Thickness (mm) | 40 |
| Volume of Filter Chamber (m3) | 6.09 |
| Filter Pressure (MPa) | 0.5~1.6 |
| Overall Dimension (mm) | 14040X3240X2965 |
| Capacity (t/h) | 36 |
| Weight (kg) | 40060 |
| Filtering Area | 20～1000m2 |
Description:
A dewatering equipment relying on pressure of slurry pump including chamber press filter and plate press filter.
Advantages:
1.Stable performance, high automation, safe and reliable, convenient operation, backwashing operation.
2.Plastic steel filtering plate, resistance to high temperature and pressure, durable, programmable control, automatic operation.
3.Chamber filter press takes filter cloth as the medium to separate solid and liquid.
4.It is a separating machine with wide rang of particle size.
Work Principle:
1.Plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle size.
2.Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth, arriving at the pattern surface, flow out of the filter board after converged.
