| Model: | SJ3.7X4.2 | Tank Spec.(DX H) (mm): | 3700X4200 |
|---|---|---|---|
| Effective Volume (m3): | 42 | Rotating Speed Of Impeller (r/min): | 42 |
| Motor Model: | Y112M-4 | Motor Power (kW): | 4 |
| Reducer Model: | XLD4-5-43 | ||
| High Light: | mining industry equipment,mining safety equipment |
||

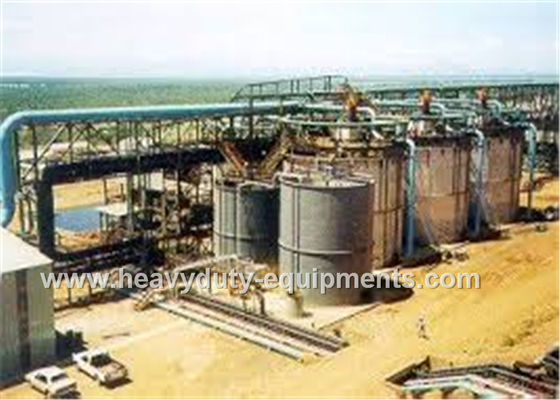

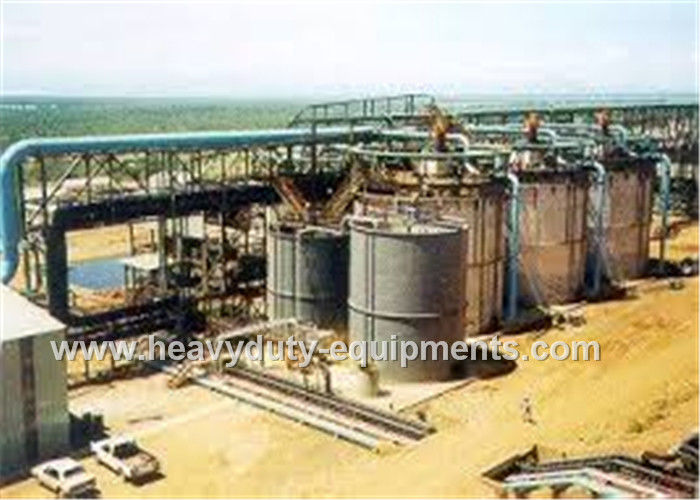

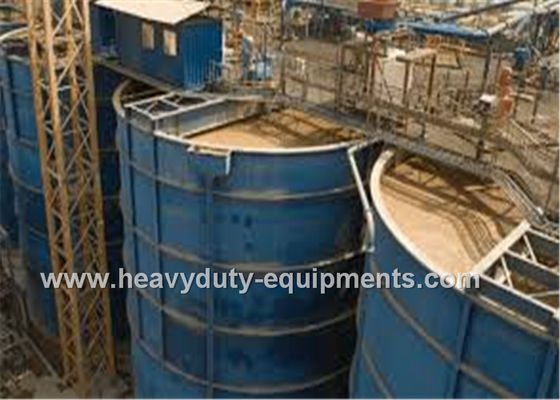

Leaching Agitation with 4kw power applied to agitation and leaching in metallurgy
Specification:
| Model | SJ3.7X4.2 |
| Tank Spec.(DX H) (mm) | 3700X4200 |
| Effective Volume (m3) | 42 |
| Rotating Speed of Impeller (r/min) | 42 |
| Motor Model | Y112M-4 |
| Motor Power (kW) | 4 |
| Reducer Model | XLD4-5-43 |
| Tank Weight (kg) | 5266 |
| Total Weight (kg) | 6153 |
| Effective Volume | 6-395m3 |
Description:
Leaching agitaion tank is a leaching equipment for cyanide leaching by referring the USA technical design.
2.The two new type impellers with large diameter, low speed and low power consumption, which can reduce the wear of carbon
3.The moderate stirring intensity, pulp concentration and fineness distributes consistently can improve the adsorption rate and import rate.
4.The impeller coated by rubber, long service life.
1.With dual impellers rotating and agitating, ore pulps move downward and then diffuse along damping plate. Air is fed in tank from the lower end of shaft, and blended with ore pulps to form uniform suspending mixed liquid.
2.In the gold cyaniding process, leaching agitation tank is applied to leach and carbon-absorb ore pulps whose fineness is -200 meshes and whose density is less than 45%.
