Product Details:
Payment & Shipping Terms:
|
| Capacity: | 10-250t/h | Diameter: | 15m |
|---|---|---|---|
| Remarks: | Including The Pond Weight | Weight (kg): | 54628 |
| Motor Power (kW): | 4 | Motor Model: | Y132M1-6 |
| Revolution Of Harrow Frame (r/min): | 0.28 | ||
| High Light: | mining industry equipment,mining safety equipment |
||

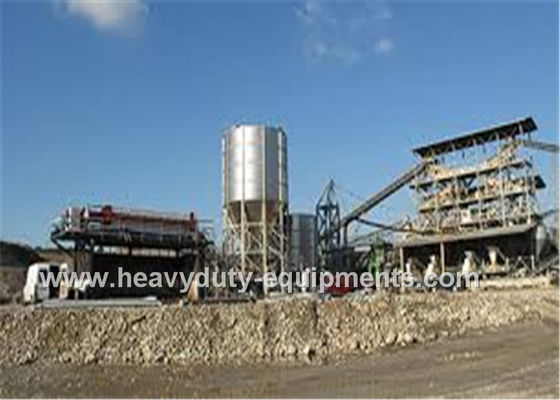

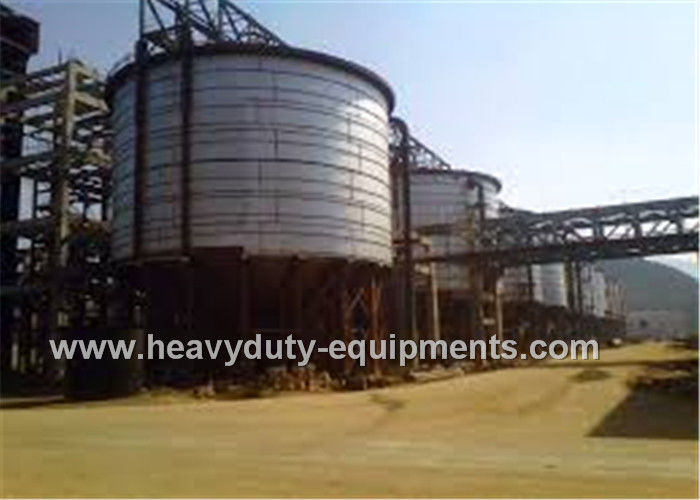

Washing Thickener with large capacity and high washing efficiency of 15m diameter
Specification:
| Spec. | 2NZS9 |
| Diameter (m) | 9 |
| Depth of Center Tank (m) | 5.91 |
| Subsidence Area (m2) | 127.3 |
| Revolution of Harrow Frame (r/min) | 0.28 |
| Capacity (t/d) | ≤ 88 |
| Motor Model | Y132M1-6 |
| Motor Power (kW) | 4 |
| Weight (kg) | 54628 |
| Remarks | Including the pond weight |
| Diameter | 15m |
| Capacity | 10-250t/h |
Description:
Washing thickener for solid-liquid separation of gold leaching liquid.
1.The continuous ore discharge method can reduce the multiple cycle of liquid gold, while extending the time of pulp staying in the washing thickener to improve the leaching rate;
2.Counter current washing, large capacity and high washing efficiency
3.Small area taken, reasonable structure and low cost of operation and maintenance
4.Via distributing box, clear water enters the lowest layer to scrub minerals.
1.Ore pulps enter into tank and then free settle in rake zone where ore pulps are compressed by scraper and moved by rake toward the discharge opening located in tank center through which ore pulps are discharged to next tank.
2.Overflow of the lowest layer comes back to distributing box to scrub minerals of upper layer. Overflow of first layer is discharged through overflow weir; minerals----which are scrubbed for three times----are discharged from bottom end.
