Product Details:
Payment & Shipping Terms:
|
| Type: | Pendulum Feeder | Inlet (LXW) (mm): | 300 X300 |
|---|---|---|---|
| Outlet (LXW) (mm): | 300 X (30~125) | Stroke Of Eccentric Wheel (mm): | 0~90 |
| Frequency (n/min): | 46 | Max. Feed Size (mm): | 30 |
| Feed Capacity (t/h): | 6.5 | ||
| High Light: | mining industry equipment,construction mining equipment |
||

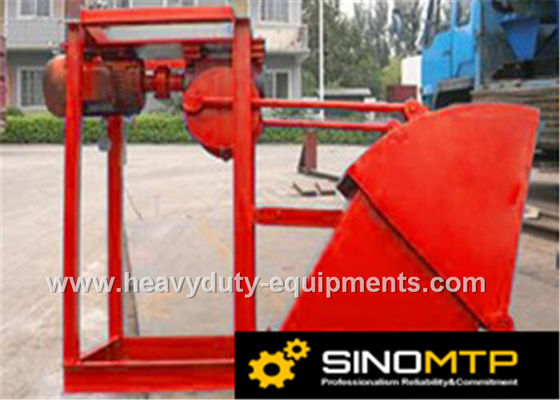

BG300X300 Pendulum feeder with 6.5 t/h feed capacity suitable for crushing
Specification:
| Model | BG300X300 |
| Inlet (LXW) (mm) | 300 X300 |
| Outlet (LXW) (mm) | 300 X (30~125) |
| Stroke of Eccentric Wheel (mm) | 0~90 |
| Frequency (n/min) | 46 |
| Max. Feed Size (mm) | 30 |
| Feed Capacity (t/h) | 6.5 |
| Motor Model | Y802-4 |
| Motor Power (kW) | 0.75 |
| Rotating Speed of Motor (r/min) | 1390 |
| Weight (kg) | 272 |
| Capacity | 4.5~25t/h |
Description:
A feeder with periodic reciprocating motion for fine particles.
1.Pendulum feeder is installed under the storage tank or hopper to convey the materials with particle size less than 50mm.
2.The materials that are dry and not easy to agglomerate such as ore stones, coal blocks etc.
3.It is not suitable to convey powder which is easy to block feeding, and makes powder fly.
4.Worm gear reducer, compact structure, reliable sealing device.
1.The machine is installed beneath the discharging opening of ore bin.
2.Minerals fall in the ore feeding box from ore bin. When it works, via coupler, electric motor drive turbine reducer to operate; the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer.
