Product Details:
Payment & Shipping Terms:
|
| Type: | Chute Feeder | Model: | CG600X500 |
|---|---|---|---|
| Outlet Dimension (W X H) (mm): | 600 X500 | Max. Feed Size (mm): | 200 |
| Feed Capacity (t/h): | 10~50 | Motor Model: | Y112M- 4 |
| Motor Power (kW): | 4 | ||
| High Light: | construction mining equipment,mining safety equipment |
||

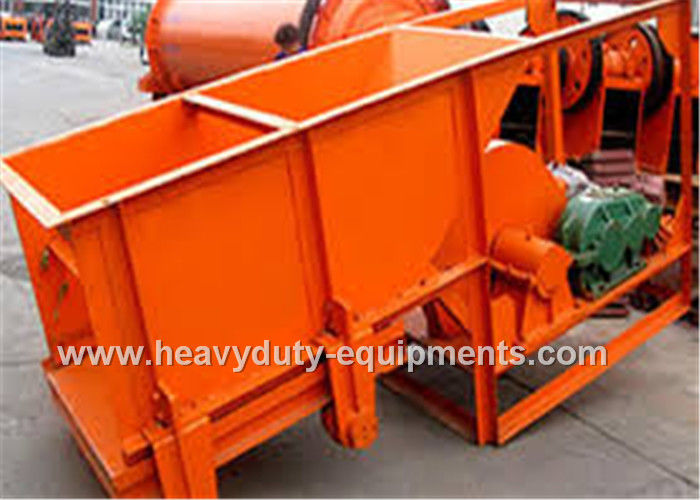

CG600X500 Chute Feeder with 4kw motor power to convey mineral lump
Specification:
| Model | CG600X500 |
| Outlet Dimension (W X H) (mm) | 600 X500 |
| Max. Feed Size (mm) | 200 |
| Feed Capacity (t/h) | 10~50 |
| Motor Model | Y112M- 4 |
| Motor Power (kW) | 4 |
| Weight (kg) | 1045 |
| Capacity | 10~90t/h |
Description:
A periodic and reciprocating feeding machine for large bulk materials.
1.Simple structure, even feeding, good continues performance.
2.Change and control flow and feeding volume at any time.
3.Stable transmission, high efficiency.
4.Compact structure, reasonable design.
5.Excellent quality, wide application.
1.The machine is usually installed underneath the discharging opening of ore bin. Minerals fall on the bushing. The bushing is located at the chute bottom, configured on idler wheel and via eccentric device connected with reducer which is linked to electric motor by coupler.
2. When it works, electric motor drives reducer via coupler; eccentric disk and drain cap which is situated between chute frame bottom and roller begin to do reciprocal and linear motion so as to uniformly feed minerals.
