ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function

China ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function supplier
ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function supplier ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function supplier

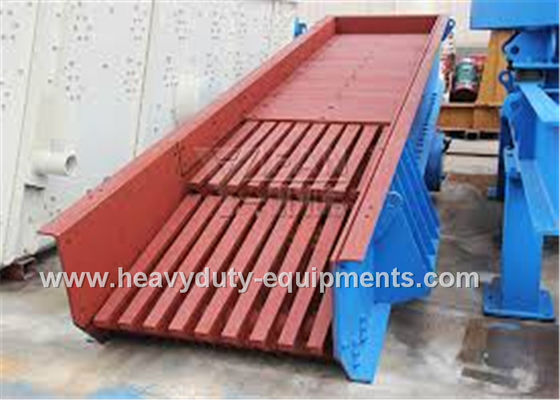

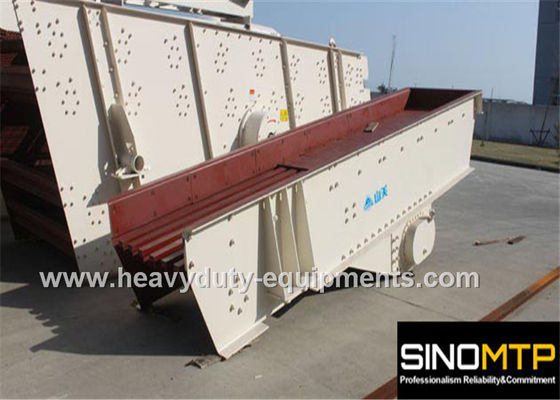

Large Image :  ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC
Model Number: ZSW590X110

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Type: ZSW Vibrating Feeder Model: ZSW590X110
Tank Dimensions (mm): 5900X1100 Max. Feed Size (mm): 630
Feed Capacity (t/h): 350~500 Motor Power (kW): 22
Capacity: 96~560t/h
High Light:

mining industry equipment

,

mining safety equipment

ZSW Industrial Mining Equipment Linear Vibratory Feeder 350T ~ 500T / D With Rough Screening Function





Specification:





Model ZSW590X110
Tank Dimensions (mm) 5900X1100
Max. Feed Size (mm) 630
Feed Capacity (t/h) 350~500
Rotating Speed of Eccentric Shaft (r/min) 800
Motor Power (kW) 22
Weight (kg) 6130
Capacity 96~560t/h





Description:



A mechanical vibrating feeding equipment with rough screening function.



Advantages:

1. Baseboard of feeding tank adopts “Blind plate + screen” to pre-screen the small block materials

2. Double eccentric shaft vibrator

3.Stable operation, reliable work, long service life, continuous and feeding for crushing, rough screening.

4.It is widely used in mineral processing, building materials, silicate and chemical industry etc.



Work Principle:

1.The vibration exciter is composed of two eccentric shafts with particular position. The large linear vibration force produced by motor and the rotation of two eccentric shafts vibrates the machine.

2.The materials are sliding and thrown so that it could move on. When the materials pass the screen bars, the small ore falls through the clearance of screen bars.
