Product Details:
Payment & Shipping Terms:
|
| Type: | Electromagnetic Vibrating Feeder | Model: | GZ6 |
|---|---|---|---|
| Tank Dimension (LXWXH) (mm): | 1600X900X250 | Feed Size (mm): | 200 |
| Horizontal Feed Amount (t/h): | 150 | Feed Amount (t/h): | 210 |
| Overall Dimension (LXWXH) (mm): | 2410X10925X1500 | ||
| High Light: | mining industry equipment,construction mining equipment |
||

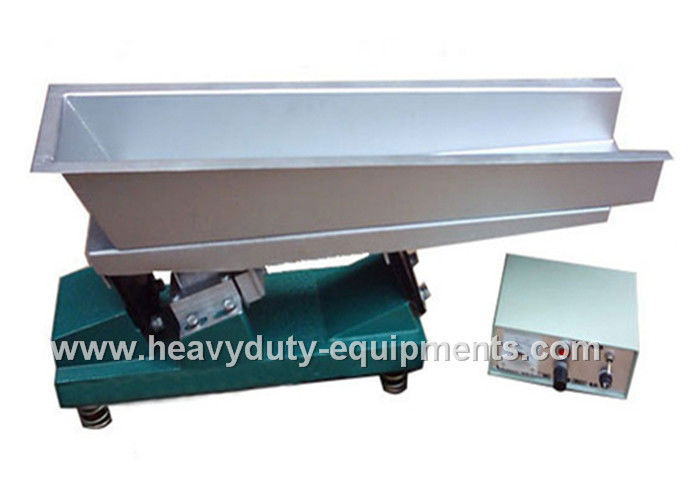

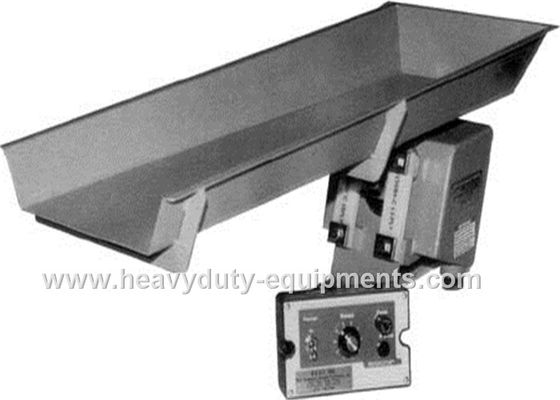

Non Sticky Materials Industrial Mining Equipment Electromagnetic Vibrating Feeder 210T / H
Specification:
| Model | GZ6 |
| Tank Dimension (LXWXH) (mm) | 1600X900X250 |
| Feed Size (mm) | 200 |
| Horizontal Feed Amount (t/h) | 150 |
| Feed Amount (t/h) | 210 |
| Power (kW) | 1.5 |
| Overall Dimension (LXWXH) (mm) | 2410X10925X1500 |
| Weight (kg) | 1252 |
| Capacity | 7~1700t/h |
Description:
A feeder with simple structure and suitable for non-sticky materials.
1.Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost.
2.Adoption the principle of the mechanical vibration, and less energy consumption.
3.Change the volume of flow at any time.
4.Centralized control and automatic control of production process.
5.Small wear of feeding tank.
1.The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip.
2.When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion.
