Product Details:
Payment & Shipping Terms:
|
| Type: | Belt Conveyor | Capacity: | 78-2995 T/h |
|---|---|---|---|
| Trough Idler: | 1.00(t/h) | Carrying Idler Type: | Belt Width B |
| Belt Speed (m/s): | 500-1400 | Application: | Chemical Industry |
| High Light: | mining industry equipment,construction mining equipment |
||
1.6M / S Grain Belt Conveyor Industrial Mining Equipment Oil Resistance 78-2995 Rough Idle
Specification:
|
Carrying Idler Type |
Belt Width B (mm) | |||||||
| Belt Speed (m/s) | 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
|
Trough Idler |
Conveying Capacity Q (t/h) | |||||||
| 0.8 | 78 | 131 | - | - | - | - | ||
| 1.00 | 97 | 164 | 278 | 435 | 655 | 891 | ||
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | ||
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | ||
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | ||
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | ||
| 3.15 | 824 | 1233 | 1858 | 2528 | ||||
| 4.0 | 2202 | 2995 | ||||||
| Capacity | 78-2995 t/h | |||||||
Description:

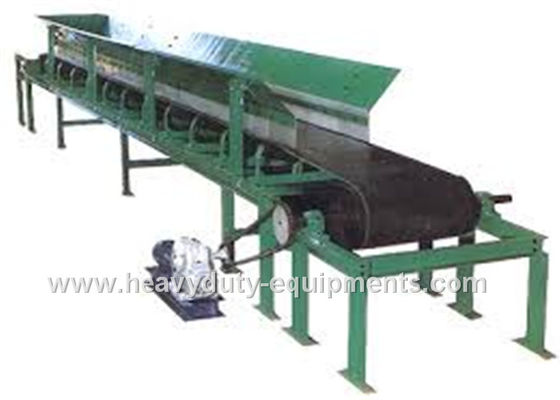

A general stationary belt conveyor.
1. Rubber or plastic bands with oil resistance, acid and alkali resistance are adopted for materials with special properties.
2. The head of conveyor belt with vulcanized linkage prolongs the service life greatly.
3. Stable conveying, no relative movement between materials and conveyer belt
4. Large capacity, simple structure, convenient maintenance, low operation cost and wide application.

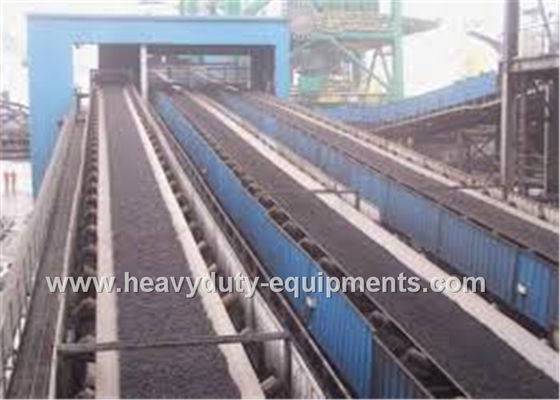

1. Belt conveyercan be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc.
2. It is suitable for conveying various materials in granular or powder
