Product Details:
Payment & Shipping Terms:
|
| Type: | Wear-resistant Slurry Pump | Flow (m3/h): | 300~900 |
|---|---|---|---|
| Max. Head (m): | 46 | Rotating Speed(r/min): | 400~1200 |
| Max. Rated Power (kw): | 250 | Max. Efficiency(%): | 78 |
| High Light: | construction mining equipment,mining safety equipment |
||
small specific gravity wear-resistant slurry pump with stable operation
Specification:
| Product | Wear-resistant slurry pump |
| Model &Spec. | SINOMTP-250/200 |
| Flow (m3/h) | 300~900 |
| Max. head (m) | 46 |
| Rotating speed(r/min) | 400~1200 |
| Max. rated power (kw) | 250 |
| Max. efficiency(%) | 78 |
| Impeller diameter (mm) | 454 |
| Weight (kg) | 1250 |
| Overall dimension (mm) | 1600x812x956 |
| Flow (m3/h) | ≤1500 |
Description:
A slurry pump for conveying pulp with concentration below 65%
In the same project, the service life of SINOMTP slurry pump is 2 times longer than other metal pump life reaching the international top quality.
Advantage:
1. Wear – resistant rubber as liners prolongs the service life by 2-4 times
2. SINOMTP wear-resistant slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.
3. Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants
4. Smooth wet parts make operation more stable

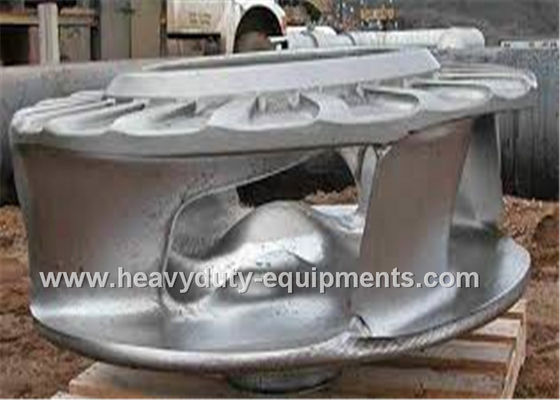

The main components of wear-resistant slurry pump includes impeller, motor, sheath etc. Sheath and impeller is made of SINOMTP wear resistant rubber. The auxiliary suspenders simply remove the pump shell, and are convenient for maintenance.
