Product Details:
Payment & Shipping Terms:
|
| Type: | Hydro Cyclone | Model: | SINOMTP-350 |
|---|---|---|---|
| Spec.: | 350 | Processing Capacity(m3/h): | 56~118 |
| Partition Size (μm): | 40~100 | Diameter Of Overflow Port(mm): | 80~120 |
| Diameter Of Dust-setting Nozzle(mm): | 30~70 | ||
| High Light: | mining industry equipment,construction mining equipment |
||
Specification:
| Product | Hydro cyclone |
| Model | SINOMTP-350 |
| Spec. | 350 |
| Processing capacity(m3/h) | 56~118 |
| Partition size (μm) | 40~100 |
| Diameter of overflow port(mm) | 80~120 |
| Diameter of dust-setting nozzle(mm) | 30~70 |
| Inlet pressure(MPa) | 0.06~0.15 |
| Capacity(m3/h) | ≤542 |
Description:

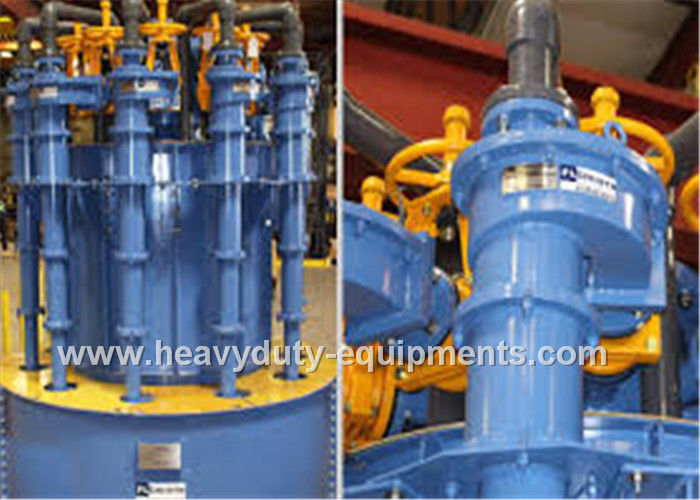

SINOMTP hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need.
Application:
The working principle of SINOMTP hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement.
Advantage:
1. The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.
2. The rational length proportion of column and cone and reasonable insert depth of vortex finder
3. Wear – resistant rubber as liners prolongs the service life by 2-4 times
4. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.
