High Performance Crawler Bulldozer 10M3 Blade Volume 30° Gradeability

China High Performance Crawler Bulldozer 10M3 Blade Volume 30° Gradeability supplier

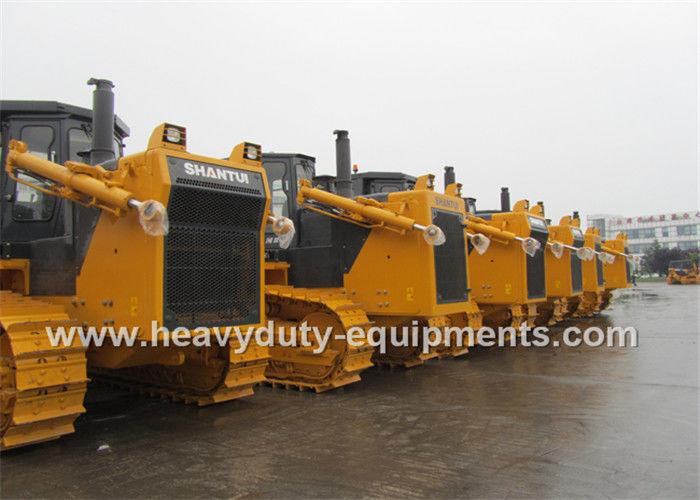

Large Image :  High Performance Crawler Bulldozer 10M3 Blade Volume 30° Gradeability

Product Details:

Place of Origin: CHINA
Brand Name: SINOMTP
Certification: ISO, CCC, BV
Model Number: SD32W

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 35 working days
Supply Ability: 100 units per month
Detailed Product Description
Operating Weight (Ripper Not Included): 38T Engine: Cummins NT855-C360S10
Engine Power: 235kw L×W×H (Ripper Not Included): 6880×4130×3640mm
Blade Width: 4130x1590 Mm Dozing Capacity: 10m3
Max Drop Below Ground Of Blade: 560mm

High Performance Crawler Bulldozer 10M3 Blade Volume 30° Gradeability







ITEM SD32W Engine Cummins NTA855-C360S10
L×W×H (Ripper not included) 6880×4130×3640mm Ripping depth of ripper Single ripper 1250mm
Operating weight (Ripper not included) 38t Three-shank ripper 842mm
Rated power 235/2000kW/rpm Lifting height of ripper

Single ripper955mm

Three-shank ripper 883mm

Gradeability 30° Number of carriers (each side) 2
Blade type Straight tilt blade Number of track rollers (each side) 7
Blade width 4130x1590 mm Number of track shoes (each side) 41
Width of track shoe 560mm
Track gauge 2140mm
Ground length and ground pressure 3150-0.105mm/MPa
Dozing capacity 10m3 Pitch 228.6mm
Forward speed 0–3.6km/h
0–6.6km/h
0–11.5km/h
Max drop below ground of blade 560 mm Reverse speed 0–4.4km/h
Lift height of blade 1560 mm 0–7.8km/h
Ripper type

Single ripper

Three-shank ripper

0–13.5km/h



Description:

SD32W rock bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth.



Advantages:

●This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.

●The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavy-duty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth.



Application:

Mining conditions (such as coarse sand, stone, and decomposed rock) and severe heavy-duty working conditions (such as frozen earth).
