High Capacity Crawler Bulldozer Earth Moving Equipment With Coal Dozing Blade

China High Capacity Crawler Bulldozer Earth Moving Equipment With Coal Dozing Blade supplier

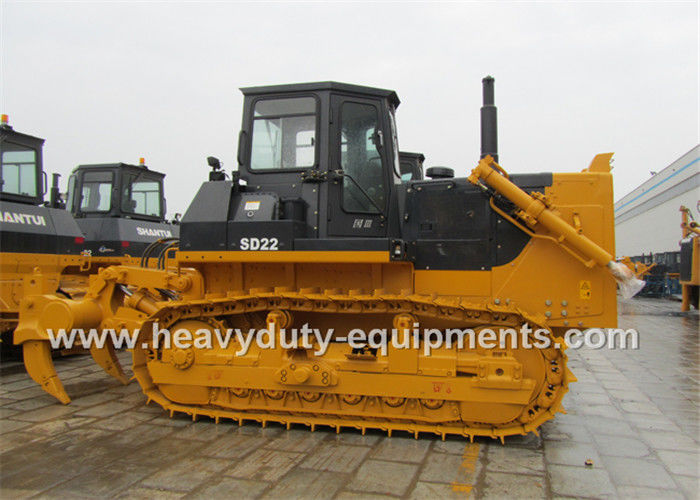

Large Image :  High Capacity Crawler Bulldozer Earth Moving Equipment With Coal Dozing Blade

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD22C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Detailed Product Description
Model: SD22 Engine: Cummins NT855-C280S10
Operating Weight (Ripper Not Included): 24.6t Ripper Type: Single Ripper Three-shank Ripper
Ripping Depth Of Ripper: Single Ripper 695mm Lifting Height Of Ripper: Single Ripper515mm/Three-shank Ripper 555mm

High Capacity Crawler Bulldozer Earth Moving Equipment With Coal Dozing Blade





Specification:



ITEM SD22C Engine Cummins
NT855-C280S10
L×W×H (Ripper not included) 5750×4200×3395mm Ripping depth of ripper Single ripper 695mm
Operating weight (Ripper not included) 24.6t Three-shank ripper 666mm
Rated power 162/1800kW/rpm Lifting height of ripper Single ripper515mm/Three-shank ripper 555mm
Grade ability 30° Number of carriers (each side) 2
Blade type Coal blade Number of track rollers (each side) 6
Blade width 4200×1350mm Number of track shoes (each side) 38
Width of track shoe 660mm
Track gauge 2000mm
Ground length and ground pressure 2730-0.066mm/MPa
Dozing capacity 9m3 Pitch 216mm
Forward speed 0–3.6km/h
0–6.5km/h
0–11.2km/h
Ma× drop below ground of blade 540 mm Reverse speed 0–4.3km/h
Lift height of blade 1210 mm 0–7.7km/h
Ripper type Single ripper Three-shank ripper 0–13.2km/h



Description:



The SD22C coal bulldozer is a modified form of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance. The SD22C has a high-capacity coal-dozing blade, and is equipped with an engine intake pre-filtering device, helping adapt it to transferring, paving and stacking operations often performed in coal mines and electricity coal yards.



Advantage:



1. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life.

2. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.

The SD22C uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tension, as well as a GPS satellite positioning system.
