|Operating Weight (Ripper Not Included):||38 Tons||Engine:||Cummins NTA855-C360S10|
|Engine Power:||235 Kw||L×W×H (Ripper Not Included):||6880×4130×3640mm|
|Blade Width:||4130x1590 Mm||Ripper Type:||Straight Tilt Blade|
|Dozing Capacity:||10m3||NumbNumber Of Track Rollers (each Side)er Of Carriers (each Side):||7|
shantui construction machinery,
dozer construction equipment

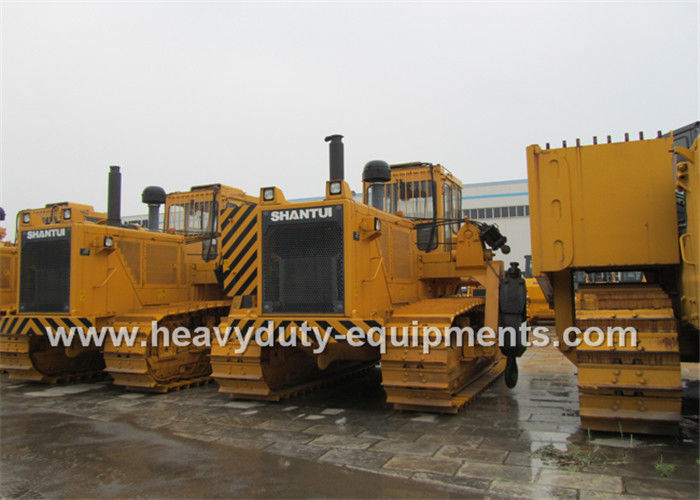

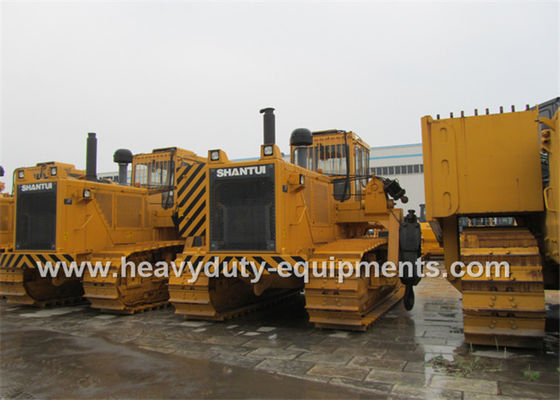

Shantui Crawler Bulldozer machine SD32W with 320hp Cummins Engine 38T Operation Weight
|L×W×H (Ripper not included)||6880×4130×3640mm||Ripping depth of ripper||Single ripper 1250mm|
|Operating weight (Ripper not included)||38t||Three-shank ripper 842mm|
|Rated power||235/2000kW/rpm||Lifting height of ripper||
Three-shank ripper 883mm
|Gradeability||30°||Number of carriers (each side)||2|
|Blade type||Straight tilt blade||Number of track rollers (each side)||7|
|Blade width||4130x1590 mm||Number of track shoes (each side)||41|
|Width of track shoe||560mm|
|Ground length and ground pressure||3150-0.105mm/MPa|
|Ma× drop below ground of blade||560 mm||Reverse speed||0–4.4km/h|
|Lift height of blade||1560 mm||0–7.8km/h|
SD32W rock bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of severe heavy-load working conditions, such as decomposed rock and frozen earth.
●This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
●The rock bulldozer is equipped with special tracks and the high strength wear-resistant blade and push rod to remarkably improve the wear resistance and especially adapt to the heavy-duty conditions such as coarse sand, stone, decomposed lithosphere, and frozen earth.
Mining conditions (such as coarse sand, stone, and decomposed rock) and severe heavy-duty working conditions.
