Shantui bulldozer SD22C adapt to transfering, paving and stacking operations in coal mines

China Shantui bulldozer SD22C adapt to transfering, paving and stacking operations in coal mines supplier

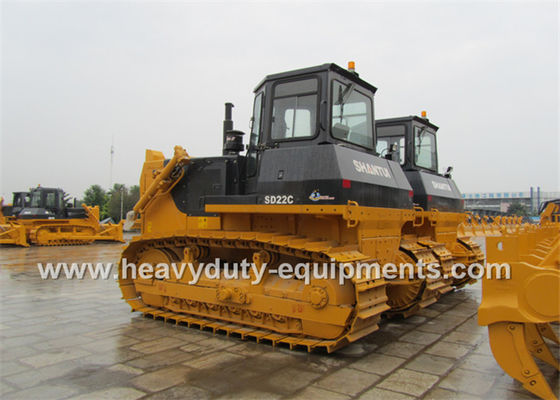

Large Image :  Shantui bulldozer SD22C adapt to transfering, paving and stacking operations in coal mines

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD22C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD22C Engine: Cummins NT855-C280S10
Operating Weight (Ripper Not Included): 24.6t Number Of Track Shoes (each Side): 38
Width Of Track Shoe: 660mm Ground Length And Ground Pressure: 2730-0.066mm/MPa
High Light:

shantui construction machinery

,

heavy equipment bulldozer

Shantui bulldozer SD22C adapt to transfering, paving and stacking operations in coal mines



Specification:



ITEM SD22C Engine Cummins
NT855-C280S10
L×W×H (Ripper not included) 5750×4200×3395mm Ripping depth of ripper Single ripper 695mm
Operating weight (Ripper not included) 24.6t Three-shank ripper 666mm
Rated power 162/1800kW/rpm Lifting height of ripper Single ripper515mm/Three-shank ripper 555mm
Gradeability 30° Number of carriers (each side) 2
Blade type Coal blade Number of track rollers (each side) 6
Blade width 4200×1350mm Number of track shoes (each side) 38
Width of track shoe 660mm
Track gauge 2000mm
Ground length and ground pressure 2730-0.066mm/MPa
Dozing capacity 9m3 Pitch 216mm
Forward speed 0–3.6km/h
0–6.5km/h
0–11.2km/h
Ma× drop below ground of blade 540 mm Reverse speed 0–4.3km/h
Lift height of blade 1210 mm 0–7.7km/h
Ripper type Single ripper Three-shank ripper 0–13.2km/h



Description:



The SD22C coal bulldozer is a modified form of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance.



Advantage:



1.The SD22C has a high-capacity coal-dozing blade, and is equipped with an engine intake pre-filtering device, helping adapt it to transferring, paving and stacking operations often performed in coal mines and electricity coal yards.

2. The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tension, as well as a GPS satellite positioning system.

With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.

Shantui bulldozer SD22C adapt to transfering, paving and stacking operations in coal mines
