Product Details:
Payment & Shipping Terms:
|
| Operating Weight (Ripper Not Included): | 37.2 T | Engine: | Cummins NTA855-C360S10 |
|---|---|---|---|
| Engine Power: | 235 Kw | L×W×H (Ripper Not Included): | 6880×4130×3725mm |
| Blade Type: | Straight Tilt Blade | Blade Width: | 4130×1590mm |
| Dozing Capacity: | Straight Tilt Blade 10m3 | ||
| High Light: | shantui construction machinery,dozer construction equipment |
||

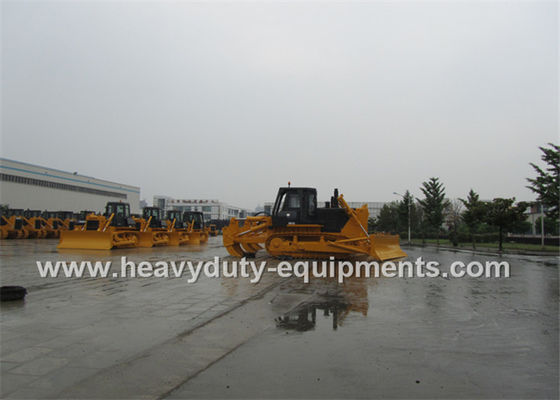

SD32D desert bulldozer Shantui brand with 37.2 operating weight single ripper
| ITEM | SD32D | Engine | Cummins NTA855-C360S10 |
| L×W×H (Ripper not included) | 6880×4130×3725mm | Ripping depth of ripper | Single ripper 1250mm |
| Operating weight (Ripper not included) | 37.2t | Three-shank ripper 842mm | |
| Rated power | 235/2000kW/rpm | Lifting height of ripper |
Single ripper955mm Three-shank ripper 883mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade | Number of track rollers (each side) | 7 |
| Blade width |
Straight tilt blade 4130×1590mm
|
Number of track shoes (each side) | 41 |
| Width of track shoe | 760mm | ||
| Track gauge | 2140mm | ||
| Ground length and ground pressure | 3150-0.076mm/MPa | ||
| Dozing capacity | Straight tilt blade 10m3 | Pitch | 228.6mm |
| Forward speed | 0–3.6km/h | ||
| 0–6.6km/h | |||
| 0–11.5km/h | |||
| Ma× drop below ground of blade | 560 mm | Reverse speed | 0–4.4km/h |
| Lift height of blade | 1560 mm | 0–7.8km/h | |
| Ripper type |
Single ripper Three-shank ripper |
0–13.5km/h |
Description:
SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.
Engine power/speed:235kW/2000rpm
Operating weight of whole machine: 37500kg
Blade capacity: 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade
Advantages:
● This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.
●It’s equipped with Cummins NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.
● The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.
Application:
Earthworks in desert zones.
