216mm Pitch Crawler Bulldozer Equipment Shantui SD22D 6.8m3 Dozing capacity

China 216mm Pitch Crawler Bulldozer Equipment Shantui SD22D 6.8m3 Dozing capacity supplier

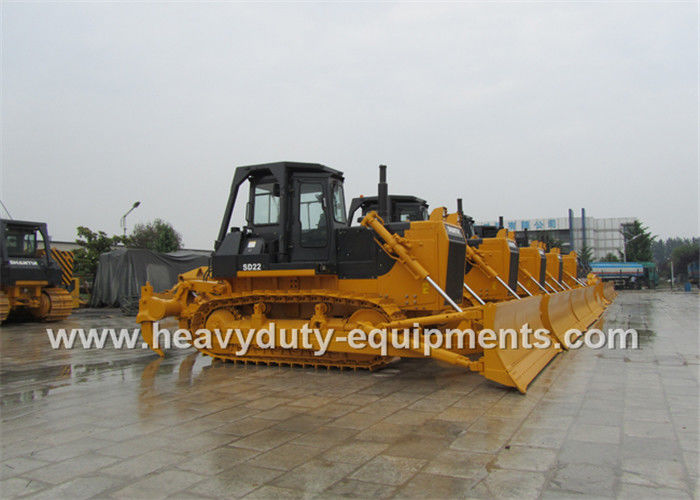

Large Image :  216mm Pitch Crawler Bulldozer Equipment Shantui SD22D 6.8m3 Dozing capacity

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD22D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Detailed Product Description
Model: SD22D Engine: Cummins NT855-C280S10
Operating Weight (Ripper Not Included): 25.8t Reverse Speed 1: 0–4.3km/h
Reverse Speed 2: 0–7.7km/h Reverse Speed 3: 0–13.2km/h

216mm Pitch Crawler Bulldozer Equipment Shantui SD22D 6.8m3 Dozing capacity





Specification:



ITEM SD22D Engine Cummins
NT855-C280S10
L×W×H (Ripper not included) 6150×4365×3395mm Ripping depth of ripper Single ripper 695mm
Operating weight (Ripper not included) 25.8t Three-shank ripper 666mm
Rated power 162/1800kW/rpm Lifting height of ripper Single ripper515mm/Three-shank ripper 555mm
Gradeability 30° Number of carriers (each side) 2
Blade type Straight tilt blade Number of track rollers (each side) 7
Blade width 4365×1248mm Number of track shoes (each side) 41
Width of track shoe 660mm
Track gauge 2000mm
Ground length and ground pressure 3050-0.070mm/MPa
Dozing capacity 6.8m3 Pitch 216mm
Forward speed 0–3.6km/h
0–6.5km/h
0–11.2km/h
Ma× drop below ground of blade 550 mm Reverse speed 0–4.3km/h
Lift height of blade 1420 mm 0–7.7km/h
Ripper type Single ripper Three-shank ripper 0–13.2km/h



Description:



Based on the SD22 bulldozer, the SD22D desert bulldozer was developed by Shantui for desert operation. The SD22D features advanced performance, high reliability, low fuel consumption and convenient maintenance. It is equipped with an extended track, reducing ground pressure and giving it excellent maneuverability in the desert.



Advantage:



1. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life.

2. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation.

216mm Pitch Crawler Bulldozer Equipment Shantui SD22D 6.8m3 Dozing capacity
