Shantui SD32D desert bulldozer with straight tilting blade , angle blade or Semi-U blade

China Shantui SD32D desert bulldozer with straight tilting blade , angle blade   or Semi-U blade supplier

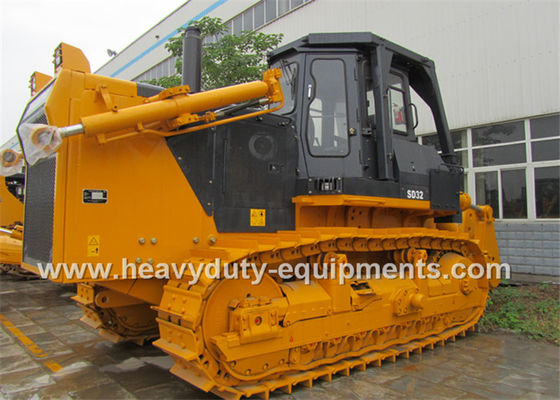

Large Image :  Shantui SD32D desert bulldozer with straight tilting blade , angle blade or Semi-U blade

Product Details:

Place of Origin: CHINA
Brand Name: SINOMTP
Certification: ISO, CCC, BV
Model Number: SD32D

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 35 working days
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Operating Weight (Ripper Not Included): 37.2 T Engine: Cummins NTA855-C360S10
Engine Power: 235 Kw L×W×H (Ripper Not Included): 6880×4130×3725mm
Blade Type: Semi-U-blade Blade Width: Semi-U Blade 4030×1720mm
Dozing Capacity: Semi-U Blade 11.9m3
High Light:

shantui construction machinery

,

dozer construction equipment

Shantui SD32D desert bulldozer with straight tilting blade , angle blade or Semi-U blade



Specification:



ITEM SD32D Engine Cummins NTA855-C360S10
L×W×H (Ripper not included) 6880×4130×3725mm Ripping depth of ripper Single ripper 1250mm
Operating weight (Ripper not included) 37.2t Three-shank ripper 842mm
Rated power 235/2000kW/rpm Lifting height of ripper

Single ripper955mm

Three-shank ripper 883mm

Gradeability 30° Number of carriers (each side) 2
Blade type

Straight tilt blade Semi-U-blade

Angle blade

Number of track rollers (each side) 7
Blade width Semi-U blade 4030×1720mm Number of track shoes (each side) 41
Width of track shoe 760mm
Track gauge 2140mm
Ground length and ground pressure 3150-0.076mm/MPa
Dozing capacity Semi-U blade 11.9m3 Pitch 228.6mm
Forward speed 0–3.6km/h
0–6.6km/h
0–11.5km/h
Ma× drop below ground of blade 560 mm Reverse speed 0–4.4km/h
Lift height of blade 1560 mm 0–7.8km/h
Ripper type

Single ripper

Three-shank ripper

0–13.5km/h



Description:

SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.

Engine power/speed:235kW/2000rpm

Operating weight of whole machine: 37500kg

Blade capacity: 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade



Advantages:

● This product adopts hydraulic drive and hydraulic control technologies, featuring advanced and reasonable structure, stable and reliable performances, and light and flexible operations.

●It’s equipped with Cummins NTA855-C360 engine, of which the pistons, cylinder sleeves, piston rings, and piston pins adopt the originally imported Cummins products.

● The high capacity sand-retaining radiator and the engine intake prefilter are equipped to abundantly adapt to the climate characteristics of serious sand wind and high air temperature in deserts and semi-deserts and the earthworks in deserts and semi-deserts.



Application:

Earthworks in desert zones.

Shantui SD32D desert bulldozer with straight tilting blade , angle blade   or Semi-U blade
