Product Details:
Payment & Shipping Terms:
|
| Model: | SD22E | Engine: | Cummins NT855-C280S10 |
|---|---|---|---|
| Operating Weight (Ripper Not Included): | 24.6t | Forward Speed 1: | 0–3.6km/h |
| Forward Speed 2: | 0–6.5km/h | Forward Speed 3: | 0–11.2km/h |
| High Light: | dozer construction equipment,heavy equipment bulldozer |
||

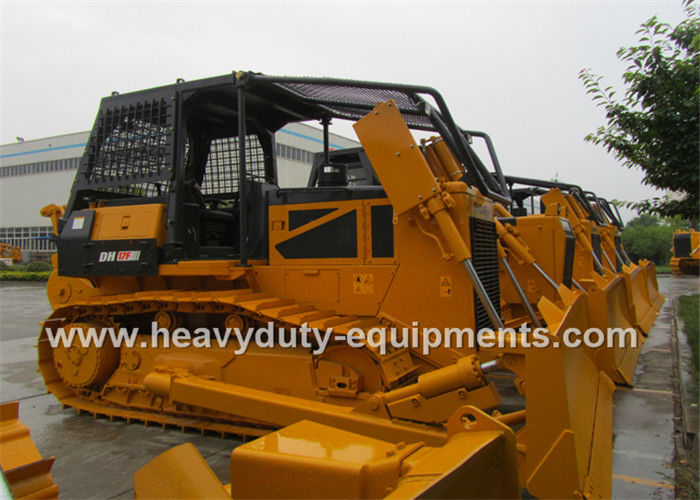

Shantui bulldozer SD22E equipped with 162kw Cummins NT855-C280S10 engine
Specification:
| ITEM | SD22E | Engine | Cummins NT855-C280S10 |
| L×W×H (Ripper not included) | 6000×3725×3332 mm | Ripping depth of ripper | Single ripper 695mm |
| Operating weight (Ripper not included) | 24.6t | Three-shank ripper 666mm | |
| Rated power | 162/1800kW/rpm | Lifting height of ripper | Single ripper515mm/Three-shank ripper 555mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade U-blade Angle blade | Number of track rollers (each side) | 7 |
| Blade width | Straight tilt blade 3725×1315mm | Number of track shoes (each side) | 41 |
| U blade 3800×1343mm | Width of track shoe | 560mm | |
| Angle blade 4365×1055mm | Track gauge | 2000mm | |
| Ground length and ground pressure | 3050-0.072mm/MPa | ||
| Dozing capacity | Straight tilt blade 6.4m3 | Pitch | 216mm |
| U blade 7.5m3 | Forward speed | 0–3.6km/h | |
| Angle blade 4.7m3 | 0–6.5km/h | ||
| 0–11.2km/h | |||
| Ma× drop below ground of blade | 538 mm | Reverse speed | 0–4.3km/h |
| Lift height of blade | 1210 mm | 0–7.7km/h | |
| Ripper type | Single ripper Three-shank ripper | 0–13.2km/h |
Description:
The SD22E extended track bulldozer is a modification of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance.
Advantage:
The machine has an extended track, increasing the overall length of track on the ground and thereby reducing ground pressure. With excellent maneuverability, the SD22E is well adapted to the earth moving operations on soft ground.The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system.
