powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity

China powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity supplier
powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity supplier powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity supplier

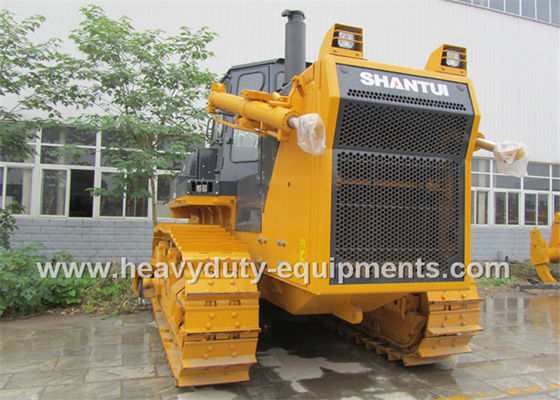

Large Image :  powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity

Product Details:

Place of Origin: CHINA
Brand Name: SINOMTP
Certification: ISO, CCC, BV
Model Number: SD42-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 35 working days
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Operating Weight (Ripper Not Included): 53t (ripper Included) Engine: Cummins KTA19-C525
Engine Power: 310kw L×W×H (Ripper Not Included): 9630×4315×3955 Mm
Blade Type: Semi-U-blade Blade Width: 4315x1875 Mm
Ripper Type: Single Ripper Ripping Depth Of Ripper: 1400mm
Lifting Height Of Ripper: 1300mm
High Light:

dozer construction equipment

,

heavy equipment bulldozer

powerful Shantui bulldozer with 420hp Cummins engine and 16cbm dozing capacity





ITEM SD42-3 Engine

Cummins

KTA19-C525

L×W×H (Ripper not included) 9630×4315×3955mm Ripping depth of ripper 1400mm
Operating weight (Ripper not included) 53t (ripper include)
Rated power 310/2000kW/rpm Lifting height of ripper 1300mm
Gradeability 30° Number of carriers (each side) 2
Blade type Semi-U-blade Number of track rollers (each side) 7
Blade width 4315x1875 mm Number of track shoes (each side) 41
Width of track shoe 610mm
Track gauge 2260mm
Ground length and ground pressure 3560-0.123mm/MPa
Dozing capacity 16m3 Pitch 260.35mm
Forward speed 0–3.7km/h
0–6.8km/h
0–12.2km/h
Ma× drop below ground of blade 700 mm Reverse speed 0–4.4km/h
Lift height of blade 1545 mm 0–8.2km/h
Ripper type Single ripper 0–14.8km/h



Description:

D42-3 crawler bulldozer is equipped with working device controlled by PPC pilot proportional valve, K-type air suspension traveling system, global intelligent service system, and ROPS and FOPS, featuring advanced structure, high working condition adaptability, and high working efficiency. It’s especially applicable for the earthwork mining and rock stripping conditions for mining and construction projects.



Advantages:

●Cummins KTA19-C525 turbocharged diesel engine reduces the quantity of parts by >25% and saves the maintenance time by >50% than like products, featuring strong power and high efficiency and energy-saving.

●The high reliability power shift transmission and the planetary gear final drive feature high power transmission efficiency and high durability and productivity.

●The new structure cylinder and the originally imported seals and hydraulic hoses for critical portions are adopted to greatly promote the service life and reliability. The external working valves make the maintenance easier.

●The K-type air suspension traveling system and hinged chassis structure can effectively guard the drive system against the influence of impact load and improve the traction performance and life of the machine.

●The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.

●The ergonomic driver seat and armrests can be adjusted easily in vertical and longitudinal directions. The gearshift, steering, and accelerator controls are arranged on the left side and the working device controls are arranged on the right side. The PPC pilot control system is adopted to achieve lighter and more flexible operations and relieve the operating fatigue.

●The front working device is one standard semi-U blade in super-high capacity of 16m3, which is an ideal high-efficiency working device for earthwork constructions and bulk material handling. The rear working device is one single-shank ripper of adjustable angle, featuring super-strong penetrating force.



Application:

The earthwork mining and rock stripping conditions for mining and construction projects.
