Shantui bulldozer SD22E equipped with Straight tilt blade, U-blade or Angle blade

China Shantui bulldozer SD22E equipped with Straight tilt blade, U-blade or Angle blade supplier

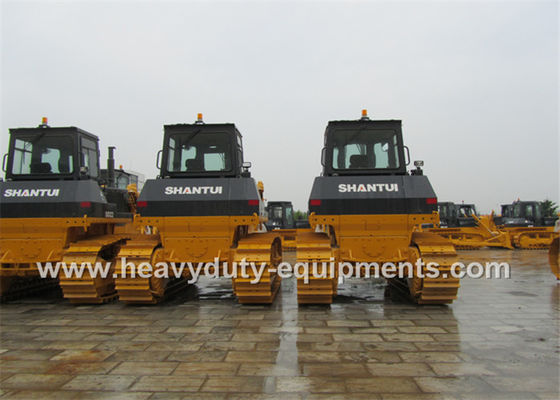

Large Image :  Shantui bulldozer SD22E equipped with Straight tilt blade, U-blade or Angle blade

Product Details:

Place of Origin: China
Brand Name: SINOMTP
Certification: ISO/CCC/BV
Model Number: SD22E

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30 work days
Supply Ability: 100 units/month
Contact Now
Detailed Product Description
Model: SD22E Engine: Cummins NT855-C280S10
Operating Weight (Ripper Not Included): 24.6t Blade Type: U-blade
Blade Width: U Blade 3800×1343 Mm Dozing Capacity: U Blade 7.5m3
High Light:

shantui construction machinery

,

heavy equipment bulldozer

Shantui bulldozer SD22E equipped with Straight tilt blade, U-blade or Angle blade



Specification:



ITEM SD22E Engine Cummins NT855-C280S10
L×W×H (Ripper not included) 6000×3725×3332mm Ripping depth of ripper Three-shank ripper 666mm
Operating weight (Ripper not included) 24.6t
Rated power 162/1800kW/rpm Lifting height of ripper Three-shank ripper 555mm
Gradeability 30° Number of carriers (each side) 2
Blade type U-blade Number of track rollers (each side) 6
Blade width U blade 3800×1343 mm Number of track shoes (each side) 38
Width of track shoe 538mm
Track gauge 1210mm
Ground length and ground pressure 3050-0.072mm/MPa
Dozing capacity U blade 7.5m3 Pitch 216mm
Forward speed 0–3.6km/h
0–6.5km/h
0–11.2km/h
Ma× drop below ground of blade 540 mm Reverse speed 0–4.3km/h
Lift height of blade 1210 mm 0–7.7km/h
Ripper type Three-shank ripper 0–13.2km/h



Description:



The SD22E extended track bulldozer is a modification of the SD22, featuring advanced performance, high reliability, low fuel consumption and convenient maintenance.





Advantage:



The machine has an extended track, increasing the overall length of track on the ground and thereby reducing ground pressure. With excellent maneuverability, the SD22E is well adapted to the earth moving operations on soft ground.With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.

Shantui bulldozer SD22E equipped with Straight tilt blade, U-blade or Angle blade
